•System

•Peripherals

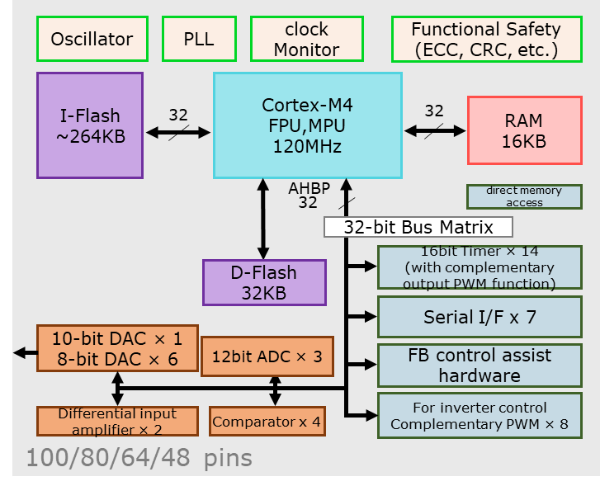

  Arm^® Cortex^®-M4F core

  Runs up to 120 MHz

  Up to 264 KB Flash Memory for instruction

  Up to 32 KB Flash Memory for data

  Up to 16 KB SRAM

  Operating voltage: 2.9V ~ 5.5V

  14 sets of 16-bit timer

  Operating temperature: Tc= -40°C ~ +110°C

  Up to 7 sets of UART

  8-channel PDMA

  Up to 7 sets of I²C

  ESD HBM 2kV

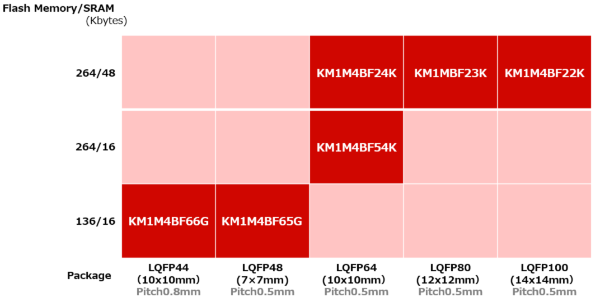

  Up to 85 GPIO (LQFP100)

•Analog

•Security

  3 sets of 12-bit 2 Msps ADC, up to 23-channel

  6 sets of 8-bit DAC

  1 set of 10-bit DAC

  Clock monitoring

  2 sets of differential variable gain amplifier (VGA)

  ADC error detection

  4 sets of comparator

  Power supply voltage detection

Input

Power

Structure

High voltage motor

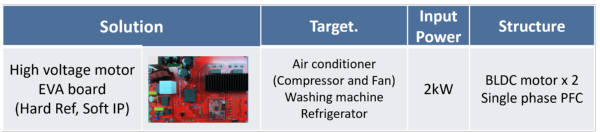

EVA board

(Hard Ref, Soft IP)

Air conditioner

(Compressor and Fan)

Washing machine

Refrigerator

2kW

BLDC motor x 2

Single phase PFC
