M253 Series

M253 Series

The NuMicro M253 series 32-bit microcontroller is based on Arm Cortex-M23 core using Armv8-M architecture. The M253 runs up to 48 MHz and features up to 128 Kbytes Flash, 16 Kbytets SRAM, 1.75V ~ 5.5V wide operating voltage, and -40°C to +105°C operating temperature. It includes a crystal-less USB 2.0 full speed device and one set of CAN FD interface for industrial automation and automotive related applications.

The USB interface supports up to 17 configurable endpoints, equivilent to 5 VCOMs for configurable Isochronous, Bulk, Interrupt and Control transfer types, and maximum 1 Kbytes buffer size. The CAN FD interface is eligible for automotive related and industrial control applications, and it supports up to 5 sets of UART with flow control and PDMA mode privided . The 4 UARTs are equipped with 16 bytes of FIFO for data receive and transmit.

The M253 series provides plenty of peripherals such as Timers, Watchdog Timers, PDMA, up to 5 sets of UART, 2 sets of I²C, 1 set of SPI/I2S and Universal Serial Control Interface (USCI). It also includes high performance analog front-end circuit, such as 12 channels of 12-bit 880 kSPS ADC, 6 channels of 16-bit PWM, and a temperature sensor to reduce form factor simultaneously.

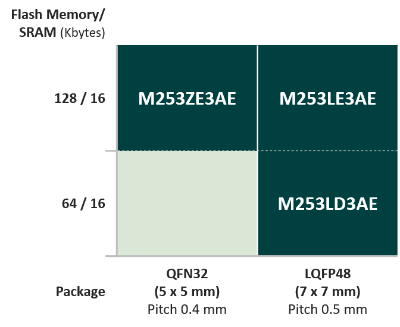

 There are two types of packages provided, one is QFN33 (5 mm x 5 mm), another is LQFP48 (7 mm x 7 mm), both are pin-compatible to M251/M252, M031 and M480 series to make the system design and parts change on functional enhancement easily.

For the development platform, Nuvoton provides the NuMaker M253 evaluation boards and Nu-Link debugger,and the the 3rd Party IDEs such as Keil MDK, IAR EWARM and Eclippse IDE with GNU GCC compilers are also supported.

Target Application:

  • USB Bridge for serial ports
  • Data Collector
  • Battery Management System
  • Automotive Related Module

Key Features:

Operating Characteristics
  - Voltage range: 1.75V ~ 5.5V
  - Temperature range: - 40 ℃ ~ 105 ℃
  - EFT 4.4 KV
  - ESD HBM 7 KV

Core
  - Arm Cortex-M23 core using Armv8-M architecture, running up to 48 MHz, without TrustZone
  - 32-bit hardware multiplier/divider

Memories
  - Up to 128 KB Flash
  - 16 KB SRAM
  - 4 KB LDROM
  - ISP/ICP/IAP programming

Clocks
  - 4 ~ 32 MHz external high speed crystal oscillator (HXT) for precise timing operation
  - 32.768 kHz external low speed crystal oscillator (LXT) for RTC function and low-power system operation
  - 48 MHz internal high speed RC oscillator (HIRC) for system operation (Factory pre-trimmed to ±0.25% and frequency deviation ±2.5% over entire temperature from -40°C ~  +105 °C
  - 4.032 MHz internal high speed RC oscillator (MIRC) for system operation
  - 38.4 kHz internal low speed RC oscillator (LIRC) for Watchdog Timer and wake-up operation

Power management
  - Integrated with Power-on Reset, Brown-out Reset and Low Voltage Reset
  - Built-in LDO

Low Power Consumption
  - 130 μA/MHz in operating mode
  - 35 μA/MHz in idle mode
  - 1.7 μA in Power-down mode (RTC off, RAM retention)

Timers
  - Up to four 32-bit timers
  - One 24-bit SysTick timer
  - One independent watchdog
  - One window watchdog
  - RTC with Calendar and Alarm

PDMA
  - 5 channels
  - Channel can be operated by – software trigger, SPI/I²S, UART, I²C, USCI, ADC and Timer

Analog
  - Up to 12 channels of 12-bit 880 kSPS ADC

Communication interfaces
  - 5 sets of UART interfaces
  - 2 sets of I²C interfaces
  - 1 set of SPI/I²S
  - 1 set of USCI (configured as UART, SPI or I²C)

CAN FD
  - 1 set of CAN FD controller with up to 64 data bytes per message
  - Compliant with CAN protocol version 2.0 part A, B and ISO 11898-1: 2015
  - Programmable receive and transmit FIFO
  - Accessible 1-Kbyte RAM memory to allocate up to 256 words

USB
  - Supports 17 endpoints for configurable Control/Bulk/Interrupt/Isochronous transfer types and maximum 1024 bytes’ buffer size
  - Compliant with USB 2.0 Full-Speed specification
  - Provides 1 interrupt vector with 4 different interrupt events (NEVWK, VBUSDET, USB and BUS)

96-bit Unique ID ( UID )

128-bit Unique Customer ID ( UCID )

Packages
  - QFN33 ( 5 mm x 5 mm ) , LQFP48 ( 7 mm x 7 mm )
