Installation & Activation
Arm provides software developers working with Nuvoton devices based on the Arm Cortex-M0 and M23 processors with a free-to-use professional tool suite for commercial use.
The free Keil MDK Nuvoton Edition – Cortex-M0/ M0+/ M23 edition includes the Arm C/C++ Compiler, the Keil RTX5 real-time operating system kernel, and the µVision IDE and debugger.
If you also wish to program Nuvoton's Arm Cortex-M4/ M7 based devices, purchase the Keil MDK-ARM Cortex-M for Nuvoton – Cortex-M4/M7 online.
In order to use this edition, follow these three easy steps:
|•||Download and install the IDE.|
|•||Activate the product.|
|•||Use example projects to get started quickly.|
|1.||Download Arm Keil MDK|
|2.||Run the downloaded MDK5xx.exe installer.|
|3.||Select your installation location (default is C:\Keil_v5). If you have existing MDK installations that you want to keep, select a new folder.|

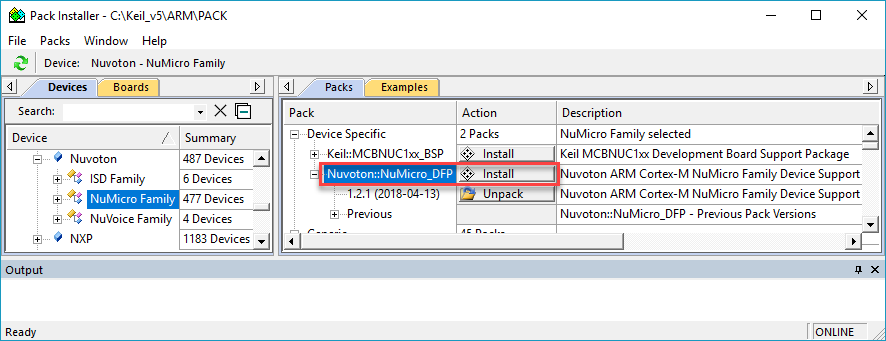

|4.||In Pack Installer, click Install to download and install the device family packs supplied by Nuvoton.
|5.||MDK is now ready to use. Launch µVision to create new projects.|
|•||Login with an account that has administration rights.|
|•||Right-click the µVision icon and select Run as Administrator... from the context menu.|
|•||Open the dialog File — License Management... and select the Single-User License tab.|
|1.||Please CLICK Get Keil MDK LIC (License ID Code), you will be directed to an online form. Next, fill the form and submit. An e-mail is sent back with the License ID Code (LIC) within a few minutes.|
|2.||To activate the product, enter the LIC in the field New License ID Code (LIC) of the dialog License Management.|
|3.||Click Add LIC.|
|1.||Open the Pack Installer from the µVision toolbar.|

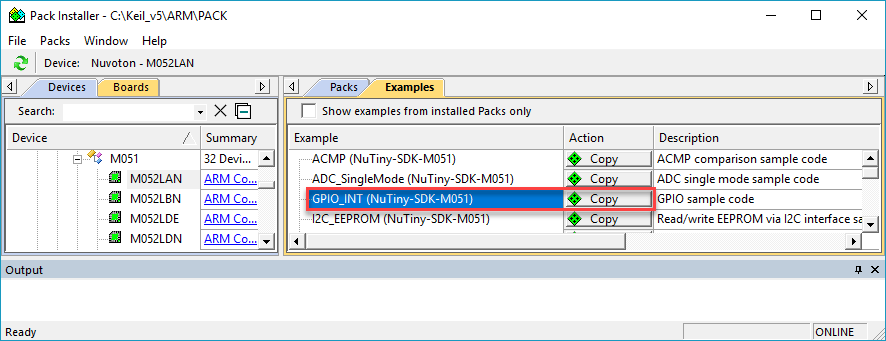

|2.||Switch to the Examples tab. From the list of available example select the example you want to install. The Devices tab allows to filter for specific devices or device series.|

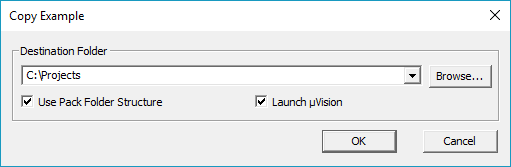

|3.||When pressing Copy, a dialog box will ask for the desired destination. The example will be directly installed into this folder. Folders that do not exist will be created automatically.|
|Tick Launch µVision to open the project after installation.|
