Air Purifier

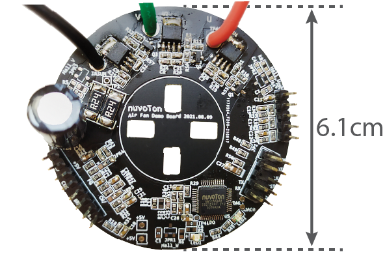

The demo for the air purifier is based on a commercial product and implemented by NM1244. NM1244 integrates numerous popular functions used in motor control, such as OPA/ ACMP/ DAC. As a result, it helps users save the PCB space, lower the BOM cost, and tuning. Furthermore, users can quickly transfer the software/hardware to their product based on the demo system

  • Features
    24V/ 2.5A/ 50W
    -
    Supports direct input/ VSP
    - Speed control with 1-R FOC
    - No extra OPA/ACMP needed
    - 12-bit DAC provides high resolution   for negative input of ACMP
    - No extra gate driver IC needed
    - OC/ OV/ LV/ Block protection
  • Specifications
    NM1244 (32-bit Arm® Cortex®-M0)
    - Up to 60 MHz operating frequency
    - Operating voltage: 2.5V to 5.5V
    High immunity: 4 kV EFT
    Operating temperature: -40℃ to 105℃
    OPA/ ACMP/ DAC inside
    Two sets of 12-bit ADC with 20 channels
    - Power down current: 1 μA
    - High I/O sink current capability

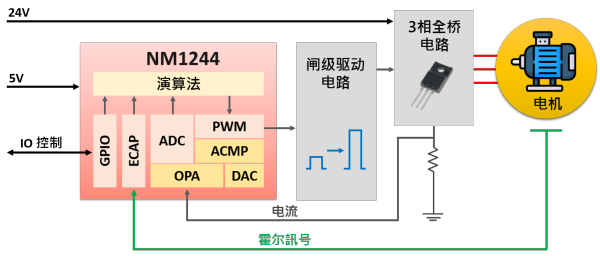

  • System Block Diagram
