车载应用中的高品质，高性能音频CODEC解决方案
新唐科技在全方位布局智能车载应用市场，深入车载音频多样化应用场景，持续推出音频的新产品及解决方案，发布高性能指标的音频CODEC和DAC新品。
伴随着汽车电子进入“智能座舱”时代，汽车智能化趋势成为行业热点，车载应用对音频产品的技术提供商提出越来越高的功能要求。

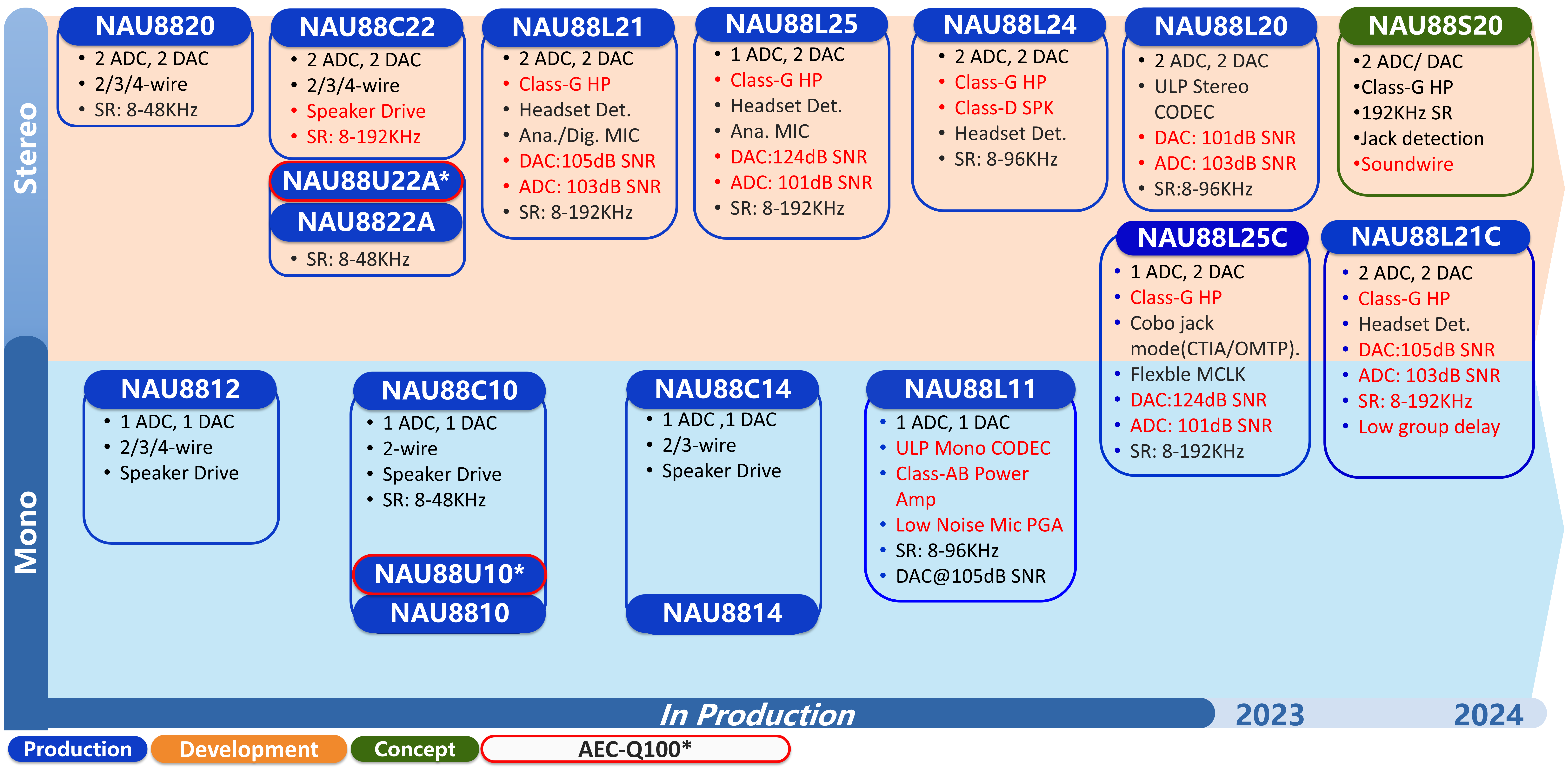

新唐科技的CODEC路线图如下：
*SR: Sampling Rate
新唐科技严格执行汽车行业规范标准，为车载应用提供符合AEC-Q100认证的产品，同时车规与工规物料可进行P2P，车规级音频编解码芯片分别有：Stereo(NAU88U22)和Mono(NAU88U10)。

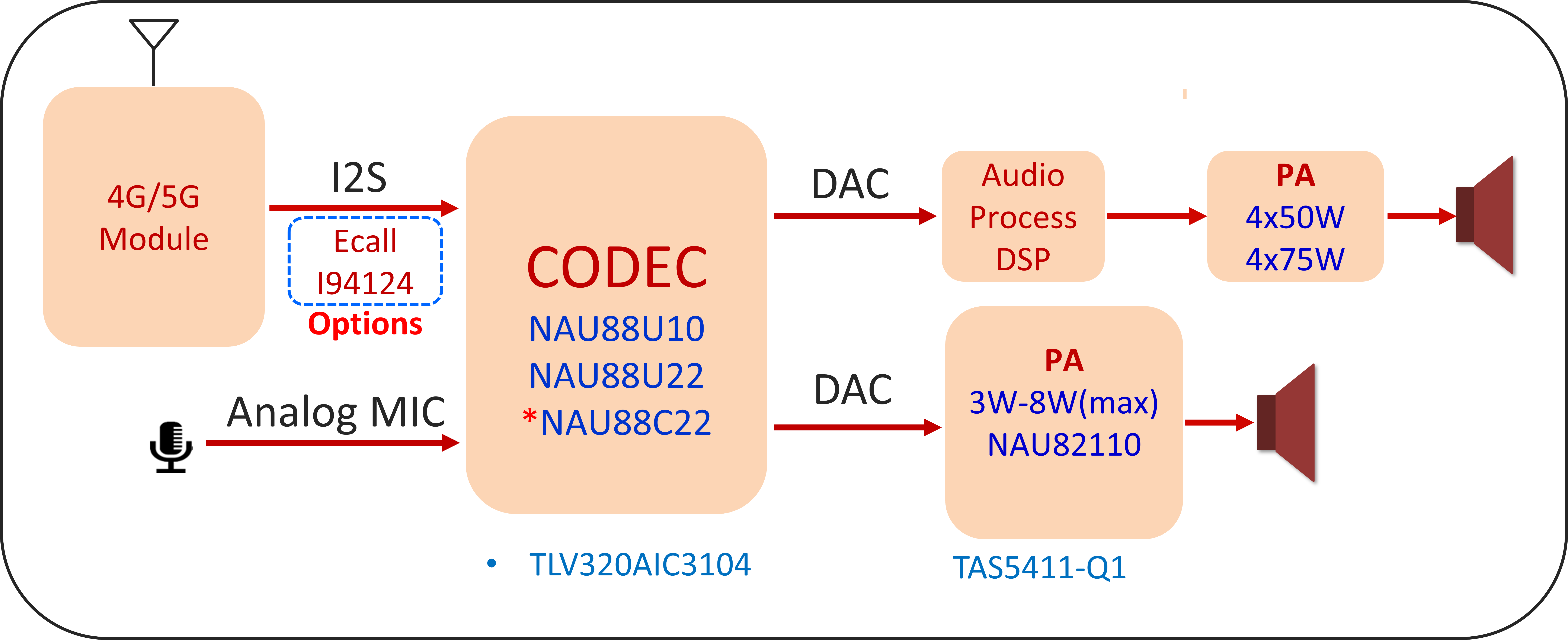

车载系统常见的T-BOX(eCall)应用，新唐科技提供的高信噪比多功能CODEC型号，除满足音频ADC/DAC编解码，内置特定功能DSP，支持PCM和I2S界面，最高采样频率达48KHz。
而跨入智能驾舱时代，“空间音频”和“沉浸式听音”的需求快速提升，进一步展现汽车厂商的硬件和软件实力，从应用上加强对关键器件的挑选(如：音频编解码，音频功放，音频DSP，等)至关重要。
智能驾舱拾音，行车记录仪，语音识别，听声辨位，降噪处理，将模拟MIC信号转换成数字信息，再提供给音频处理单元或车载SOC，这类应用中对信噪比和音频采样频率指标要求高；新唐可提供多款高性价工规和车规型号；“网红”型号NAU85L40B，多路ADC通道，支持多路复用(TDM)PCM输出，QFN28L封装。
车载前装应用中常将SOC或DSP输出的数字信号转换为模拟信号给后端模拟功放; 而车载后装应用中，以改装音箱中较为常见DAC的应用，常根据后端模拟功放的通道数，决定前端DAC的通道配置。NAU8421为24bit立体声DAC，高信噪比128dB，QFN32的封装。
*SR: Sampling Rate
◼️ Audio CODEC Series - Mono CODEC
| Part No | Description | # of ADC | # of DAC | SNR (dB) - ADC |
SNR (dB) - DAC |
THD (dB) - ADC |
THD (dB) - DAC |
Sample Rate (kHz) | Audio Format | Development Tools | Control Interface | Analog/Digital (V) | Package |
| NAU8810 | Mono Audio CODEC | 1 | 1 | 91 | 93 | -79 | -84 | 8 ~ 84 | I2S PCM (TDM) | NAU8810-DEMO | 2-Wire | 2.5 ~ 3.6 1.6 ~ 3.6 |
QFN20 (4x4) |
| NAU88C10 | Mono Audio CODEC | 1 | 1 | 91 | 93 | -79 | -84 | 8 ~ 84 | I2S PCM (TDM) | NAU88C10-DEMO | 2-Wire | 2.5 ~ 3.6 1.6 ~ 3.6 |
QFN20 (4x4) |
| NAU88U10 | Mono Audio CODEC (*AEC-Q100) |
1 | 1 | 91 | 93 | -79 | -84 | 8 ~ 84 | I2S PCM (TDM) | NAU88C10-DEMO | 2-Wire | 2.5 ~ 3.6 1.6 ~ 3.6 |
QFN20 (4x4) |
◼️ Audio CODEC Series - Mono CODEC
| Part No | Description | # of ADC | # of DAC | SNR (dB) - ADC |
SNR (dB) - DAC |
THD (dB) - ADC |
THD (dB) - DAC |
Sample Rate (kHz) | Audio Format | Development Tools | Control Interface | Analog/Digital (V) | Package |
| NAU8812 | Mono Audio CODEC with Speaker Driver | 1 | 1 | 91 | 93 | -79 | -84 | 8 ~ 48 | I2S PCM (TDM) | NAU8812-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (5x5) SSOP-28 |
| NAU8814 | Mono Audio CODEC with Speaker Driver, Equalizer | 1 | 1 | 91 | 93 | -79 | -84 | 8 ~ 48 | I2S PCM (TDM) | NAU8814-DEMO | 2-Wire 3-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN24 (4x4) |
| NAU88C14 | Mono Audio CODEC with Speaker Driver, Equalizer | 1 | 1 | 91 | 93 | -79 | -84 | 8 ~ 48 | I2S PCM (TDM) | NAU88C14-DEMO | 2-Wire 3-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN24 (4x4) |
◼️ Audio CODEC Series - Stereo CODEC
| Part No | Description | # of ADC | # of DAC | SNR (dB) - ADC |
SNR (dB) - DAC |
THD (dB) - ADC |
THD (dB) - DAC |
Sample Rate (kHz) | Audio Format | Development Tools | Control Interface | Analog/Digital (V) | Package |
| NAU8820 | Stereo Audio CODEC | 2 | 2 | 90 | 94 | -80 | -84 | 8 ~ 48 | I2S (PCM/TDM) | NAU8820-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (5x5) |
| NAU8822A | Stereo Audio CODEC with Speaker Driver | 2 | 2 | 90 | 94 | -80 | -84 | 8 ~ 48 | I2S (PCM/TDM) | NAU8822A-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (5x5) |
| NAU88U22A | Stereo Audio CODEC with Speaker Driver (*AEC-Q100) | 2 | 2 | 90 | 94 | -80 | -84 | 8 ~ 48 | I2S (PCM/TDM) | NAU8822A-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (5x5) |
| NAU88C22 | Stereo Audio CODEC with Speaker Driver | 2 | 2 | 89 | 89 | -78 | -84 | 8 ~ 48 | I2S (PCM/TDM) | NAU88C22-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (4x4) QFN32 (5x5) |
◼️ Audio CODEC Series - ULP (Ultra Low Power) CODEC
| Part No | Description | # of ADC | # of DAC | SNR (dB) - ADC |
SNR (dB) - DAC |
THD (dB) - ADC |
THD (dB) - DAC |
Sample Rate (kHz) | Audio Format | Development Tools | Control Interface | Analog/Digital (V) | Package |
| NAU88L11 | ULP Mono Audio CODEC with Class-G Headphone Driver | 1 | 1 | 103 | 105 | -93 | -85 | 8 ~ 96 | I2S PCM(TDM) | NAU88L11-DEMO | 2-Wire | 1.6 ~ 2.0 1.6 ~ 3.6 |
QFN20 (4x4) |
| NAU88L20 | ULP Stereo CODEC with Stereo Differential Lineout Driver | 2 | 2 | 98 | 100 | -91 | -85 | 8 ~ 96 | I2S PCM(TDM) | NAU88L20-DEMO | 2-Wire | 2.5 ~ 3.6 2.5 ~ 3.6 |
QFN32 (4x4) |
| NAU88L21 | ULP Stereo CODEC with Class-G Headphone Driver | 2 | 2 | 103 | 105 | -91 | -80 | 8 ~ 192 | I2S PCM(TDM) | NAU88L21-DEMO | 2-Wire | 1.6 ~ 2.0 1.6 ~ 3.6 |
QFN32 (4x4) QFN32 (5x5) |
| NAU88L21C | ULP Stereo Audio CODEC with Class-G Headphone Driver | 2 | 2 | 103 | 105 | -93 | -85 | 8 ~ 192 | I2S PCM(TDM) | - | 2-Wire | 1.6 ~ 2.0 1.6 ~ 3.6 |
QFN32 (5x5) |
| NAU88L24 | ULP Stereo Audio CODEC with Advanced Headset Feature Class-D Amp | 2 | 2 | 100 | 103 | -85 | -77 | 8 ~ 96 | I2S PCM(TDM) | NAU88L24l-DEMO | 2-Wire | 1.6 ~ 2.0 1.6 ~ 3.6 |
QFN48 (6x6) QFN48 (7x7) WLCSP56 |
| NAU88L25B | ULP Stereo Audio CODEC with Advanced Headset Feature & Detection Class-G Headphone Driver | 1 | 2 | 101 | 124 | -91 | -89 | 8 ~ 192 | I2S PCM(TDM) | NAU88L25-DEMO | 2-Wire | 1.6 ~ 2.0 1.6 ~ 3.6 |
QFN32 (5x5) WLCSP42 |
◼️ Audio ADC Series
| Part No. | Description | # of ADC | # of DAC |
SNR (dB) - ADC |
SNR (dB) - DAC |
THD (dB) - ADC |
THD (dB) - DAC |
Sample Rate (kHz) | Audio Format | Development Tools | CTRL I/F | Analog/Digital (V) | Package |
| NAU8501 | Stereo Audio ADC with Line Input Differential Microphone Inputs | 2 | - | 90 | - | -80 | - | 8 ~ 48 | I2S PCM(TDM) | NAU8501-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (4x4) |
| NAU8502 | Stereo Audio ADC with Differential Microphone Inputs | 2 | - | 90 | - | -80 | - | 8 ~ 48 | I2S PCM(TDM) | NAU8502-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (5x5) |
| NAU85L20B | ULP Stereo Audio ADC with Integrated FLL Microphone Preamplifier | 2 | - | 101 | - | -91 | - | 8 ~ 96 | I2S PCM(TDM) | NAU85L20-DEMO | 2-Wire 3-Wire |
1.6 ~ 2.0 1.6 ~ 3.6 |
QFN28 (4x4) |
| NAU85L40B | ULP Quad Audio ADC with Integrated FLL Microphone Preamplifier | 4 | - | 101 | - | -91 | - | 8 ~ 96 | I2S PCM(TDM) | NAU85L40-DEMO | 2-Wire 3-Wire |
1.6 ~ 2.0 1.6 ~ 3.6 |
QFN28 (4x4) |
◼️ Audio DAC Series
| Part No. | Description | # of ADC | # of DAC |
SNR (dB) - ADC |
SNR (dB) - DAC |
THD (dB) - ADC |
THD (dB) - DAC |
Sample Rate (kHz) | Audio Format | Development Tools | CTRL IF | Analog/Digital (V) | Package |
| NAU8401 | Stereo Audio DAC with Speaker Driver | - | 2 | - | 94 | - | -84 | 8 ~ 48 | I2S PCM(TDM) | NAU8401-DEMO | 2-Wire 3-Wire 4-Wire |
2.5 ~ 3.6 1.6 ~ 3.6 |
QFN32 (5x5) |
| NAU8402 | Stereo Audio DAC with 2Vrms Line Output | - | 2 | - | 98 | - | -82 | 24 ~ 96 | I2S PCM(TDM) | NAU8402-DEMO | - | 3.0 ~ 3.6 1.6 ~ 3.6 |
TSSOP 16 |
| *NAU8421 | Stereo Audio DAC with 8Vpp Differential Output | - | 2 | - | 122 | - | -100 | 8 ~ 192 | I2S PCM(TDM) | - | 2-Wire | - | QFN32 (5x5) |
*Under Development
◼️ Precision ADC Series
|
Part No. |
Description | # of ADC | # of DAC | Resolution Bits | ADC Type | ENOB (Gain=1, 10 SPS) | RMS Noise (PGA=128) |
Sample Rate Max (Hz) | Gain | Development Tools | CTRL IF | Analog/Digital (V) | Package |
| NAU7802 | Precision Audio ADC | 2 | - | 24 | Sigma-Delta | 23 | 50 nV in 10 SPS 150 nV in 80 SPS |
10, 20, 40, 80 & 320 | 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x | NAU7802-EVB | 2-Wire | 2.7 ~ 5.5 2.7 ~ 5.5 |
SOP16 PDIP16 |
*SR: Sampling Rate
本期重点针对车载应用中的音频CODEC，ADC/DAC解决方案，请大家继续保持关注，后续还将持续推出并推介在消费类应用中，新唐科技的新产品及解决方案。
