KM1M4BF66G
KM1M4BF系列是内置闪存的32位微控制器，适用于需要高速对应的外围功能来实现变频电机控制的各种家电，如空调室外机、洗衣机和冰箱等。
KM1M4BF系列采用Arm公司的Cortex-M4F为核心，提供以下先进的功能和应用：
・内置指令和数据的存储器
・DMA控制器
・时钟发生器
・总线控制器
・中断控制器
・外围电路、定时器/串行接口
・专用于变频电机控制的PWM控制电路
・高精度・高速模拟电路
KM1M4BF系列提供系统安全设计和各种安全机制，包括内存保护、时钟监控、电源电压检测、看门狗定时器等。
Lineup

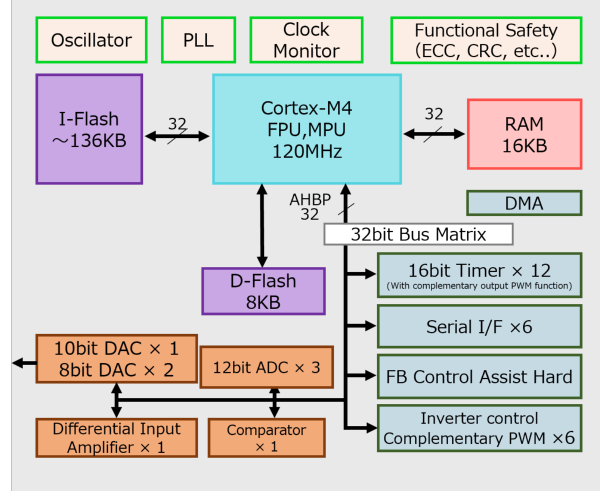

Block Diagram
Features
|
系统 |
外围设备 |
|
|
•Arm® Cortex®-M4F 内核 |
•电机及电源控制PWM 8组 | |
|
•运行频率最高可达120 MHz |
- 互补PWM输出 | |
|
•用于指令的闪存最高可达264 KB |
- 死区时间插入，输出移位 | |
|
•用于数据的闪存最高可达32 KB |
- 占空比缩减，周期缩减 | |
|
•SRAM最高可达16 KB |
- 同步ADC触发 | |
|
•工作电压：2.9V ~ 5.5V |
•16位定时器 14组 |
|
|
•工作温度：Tc= -40°C ~ +110°C |
•UART接口最多7组 |
|
|
•8 通道 PDMA |
•I2C接口最多7组 |
|
|
•ESD HBM 2kV |
•SPI接口最多7组 | |
|
|
•UGPIO接口最多85 (LQFP100) |
|
|
模拟 |
安全性 |
|
|
•12位2 Msps ADC 3组（最高可达23通道） |
•内存ECC | |
|
•8位DAC 6组 |
•内存保护 | |
|
•10位DAC 1组 |
•时钟监控 |
|
|
•差分可变增益放大器（VGA）2组 |
•ADC错误检测 |
|
|
•比较器4组 |
•电源电压检测 |
Reference Board
|
Solution |
Target |
Input Power |
Structure |
Deliverables |
|
|
Low voltage motor EVA board MCU:KM103HFD KM1M7AF/M4BF |
|
Air purifiers Power tools conveyor |
134W |
BLDC motor x 1 |
Hard Ref Soft IP |
|
High Voltage Motor EVA board MCU:KM103HFD KM1M7AF/M4BF |
|
Air conditioner (Compressor and Fan) Washing machine Refrigerator |
2kW |
BLDC motor x 2 Single phase PFC |
Hard Ref Soft IP |
|
3-phase interleaved PFC EVA board MCU:KM1M7BF |
 |
Air conditioner Heat Pump |
3.5kW |
BLDC motor x 2 3phase PFC |
Hard Ref Soft IP |
