M032FC1AE

M032FC1AE

Nuvoton NuMicro M032FC1AE MCU is based on the Arm® Cortex®-M0 core running up to 48 MHz. It provides a comprehensive solution for the Crystal-less USB applications with 32 KB Flash, 4 KB SRAM and 1.8 to 3.6V low-voltage interface.

M032FC1AE embedded an extra SPROM (Security Protection ROM), providing a secure code execution area to protect the intelligent property of developers.

With its special designed such as 6-ch 96 MHz PWM providing fast response control to the external devices, 2 MSPS ADC providing a fast and precise analog to digital data conversion for sensing voltage and current which is very suitable for gaming application. Additionally, M032FC1AE provide high speed communication interface included 24 MHz SPI for high speed sensor device communication, 6 MHz UART with 1-wire function for encrypted communication target sensing/control devices and consumer device.

M032FC1AE also provides plenty of peripherals included 1 set Universal Serial Control Interface(USCI) which can be configure as UART, SPI or I²C, 1 set UART, 1 set SPI/I²S, 3-ch 12-bit 2 MSPS ADCs for various application demand. And it can operate in a wide temperature range from -40°C to 105°C.

Target Application:

  • Gaming Mouse
  • LED controller
  • 5 module
  • Coffee Maker

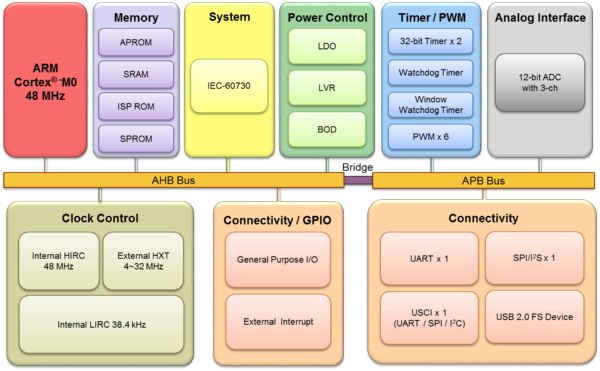

Key Features:

Core
  - Arm® Cortex®-M0 processor running up to 48MHz

Memories
  - 32 KB Flash
  - 4 KB SRAM
  - 2 KB Flash for user program loader ( LDROM )
  - ISP / ICP / IAP programming
  - 512 bytes SPROM (Security Protection ROM)

Clocks
  - 4 to 32 MHz HXT crystal oscillator or external input clock
  - Internal 48 MHz HIRC oscillator with frequency drift over temperature ± 2 % within all temperature range
  - Internal 38.4 kHz LIRC for Low-power operating mode

Timers
  - Up to 2 32-bit timers
  - One 24-bit SysTick timer

PWM
  - 6 channels 96 MHz 16-bit PWM with 12-bit prescaler and brake function

Analog
  - 3 channels 12-bit 2 MSPS ADC

Communication interfaces
  - 1-set of 6 MHz UART interfaces
  - 1-set of 24 MHz SPI/I²S interface
  - 1-set of USCI interfaces that supports UART, SPI and I²C mode

Advanced communication interface
  - USB 2.0 full-speed with on chip PHY (support Crystal-less)

11 GPIO (Support 5V tolerant I/O, except analog pins)

96-bit Unique ID ( UID )
  - Can be used as a security key

128-bit Unique Customer ID ( UCID )

Operating Characteristics
  - Voltage range: 1.8 V to 3.6 V
  - Temperature range: -40°C to 105°C
  - EFT 4.4 kV
  - ESD HBM 6 kV

Package
  - TSSOP20 ( 4.4 x 6.5 mm)
