Totem Pole LLC EVB

Nuvoton contributes to a carbon-neutral world with digital power control solutions.

For more than 20 years, we have accumulated high-speed and high-precision feedback technology, focused on power electronics control, and built track records mainly in the Asian market.

Here, we introduce our latest MCU solution for digital power systems, which fully uses SiC power devices.

  • Features
    -  High efficiency by using SiC power device
    -
    Low switching loss and noise by zero volt switching (ZVS)
    - Built-in high-precision analog reduces external parts
    - Ready to evaluate for industrial power supply unit, such as server PSU, base station and FA power supply
  • Specifications
    - Full Bridge LLC topology
    - Input: 390±25Vdc
    -  Output: 3kW (48Vdc 62.5A)
    -  Efficiency: 97%

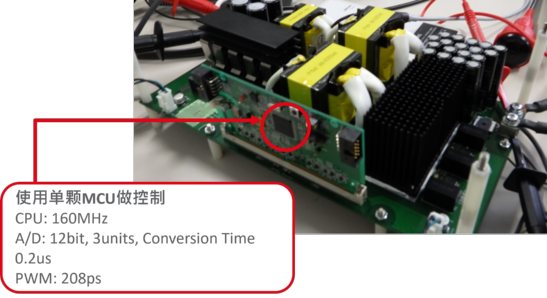

    23_Nuvoton-3kW Full Brdige LLC EVB with KM1M7CF series MCU-1

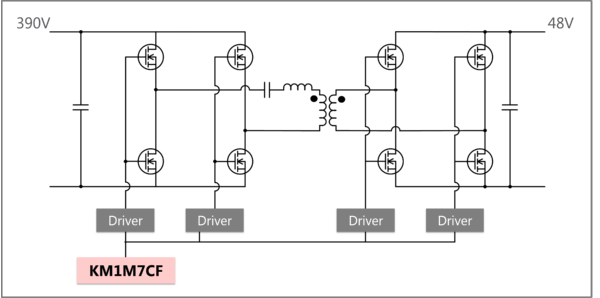

  • System Block Diagram
    23_Nuvoton-3kW Full Brdige LLC EVB with KM1M7CF series MCU-2 23_Nuvoton-3kW Full Brdige LLC EVB with KM1M7CF series MCU-3
