NT-NAU82011

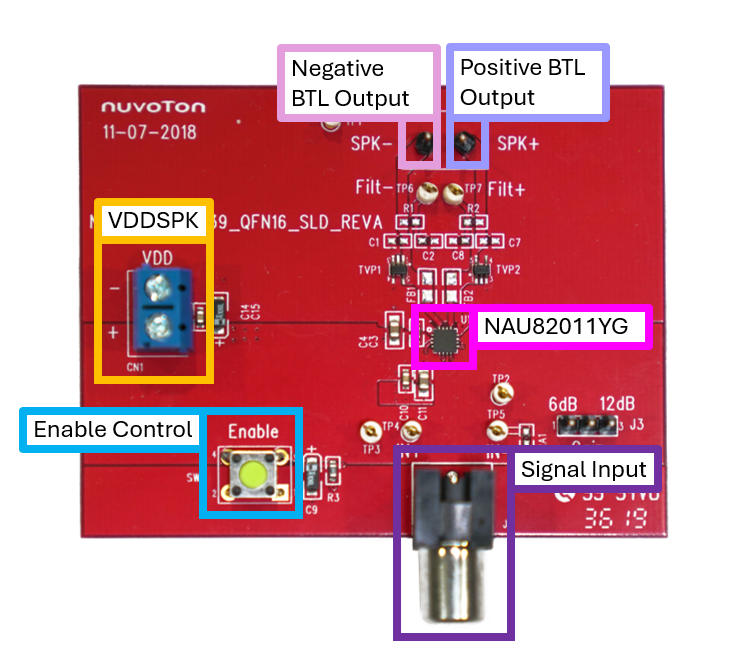

Figure shows the main components and connectors from the front side of NT-NAU82011 as the following list:
- Target Chip: NAU82011YG (U1)
- Signal Input RCA Connector (J2)
- VDDSPK Input (CN1)
- BTL Output (CN2)
- Enable Switch (SW1)
Figure shows the main components and connectors from the front side of NT-NAU82011 as the following list:
