NL-NAU88C10 compatible ICs:

• NAU88C10YG
• NAU8810YG
• NAU88U10YG

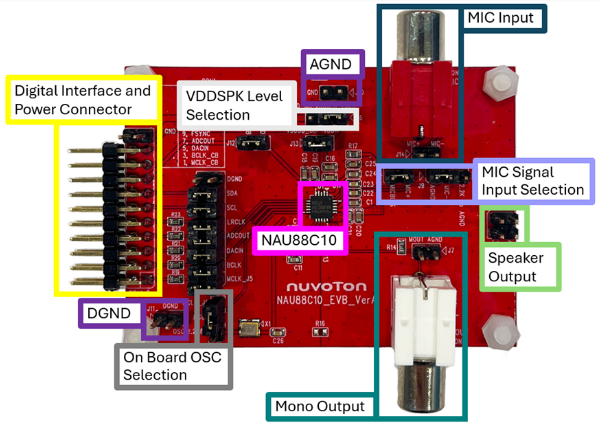

Figure shows the main components and connectors from the front side of NL-NAU88C10 as the following list:

• Target Chip: NAU88C10 (U1)
• RCA Terminals and Additional Connectors for MIC Input
• RCA Terminals and Additional Connectors for Mono Output
• Additional Connectors for Speaker Output
• On Board 12.288M OSC (12.288M Hz) for MCLK Pin
• Major Digital Interface and Power Extension Connector
• VDDSPK Level Selection
