NL-NAU85L42
NL-NAU85L42 compatible ICs:

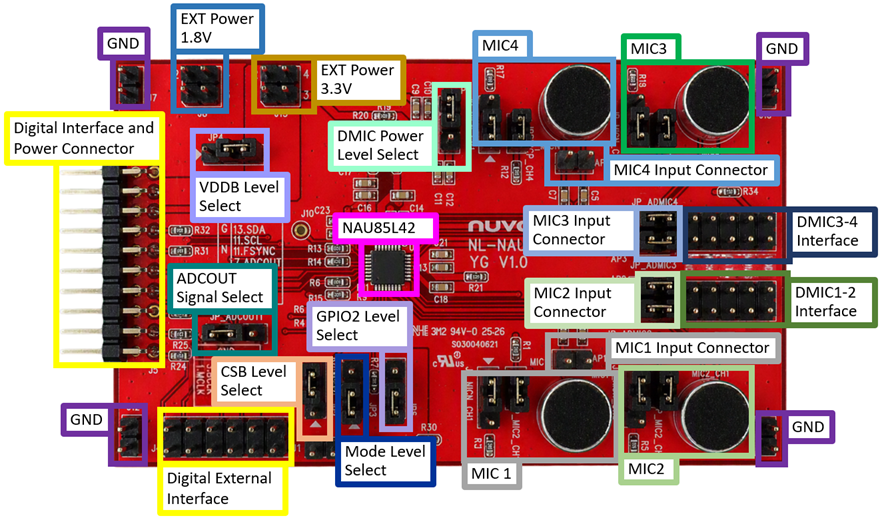

The figure shows the main components and connectors from the front side of NL-NAU85L42 as the following list:
- Target Chip: NAU85L42 (U1)
- Analog Microphone (MIC1, MIC2, MIC3, MIC4)
- Microphone Input Connects
- DMIC Interface (J2, J3)
- Digital Interface and Power Extension Connector (P2)
- 3.3V EXT Power (J8)
- 1.8V EXT Power (J13)
- GND (J6, J7, J11, J12)
- VDDB Level Select (JP4)
- CSB Level Select (JP2)
- ADC Data OUT Select (JP_ADCOUT1)
- DMIC Power Level Select (JP1)
