MG51EC1AE
NuMicro® MG51EC1AE is an embedded Flash Memory type 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. It supports 16 / 24 MHz core speed and features up to 32 KB of Flash Memory, 256 bytes of RAM and 4 KB of auxiliary RAM (XRAM), 4 KB of Flash loader memory (LDROM), 2.4V to 5.5V operating voltage, and -40°C to +105°C operating temperature.
The MG51 series also provides plenty of peripherals including four 16-bit Timers, two UARTs with frame error detection and automatic address recognition, three ISO 7816-3 interfaces, one SPI, one I2C, six basic PWM output channels, six enhanced PWM output channels, and 15-channel 12-bit 500 ksps ADC with continuous mode.
For the development, Nuvoton provides the NuMaker evaluation board and Nuvoton Nu-Link debugger. The 3rd Party IDE such as Keil C51, IAR EW8051, and NuEclipse SDCC compilers are also supported.
Target Application:
- Home Appliances
- LED Lighting Control
- Motor Control
- Industrial Automation

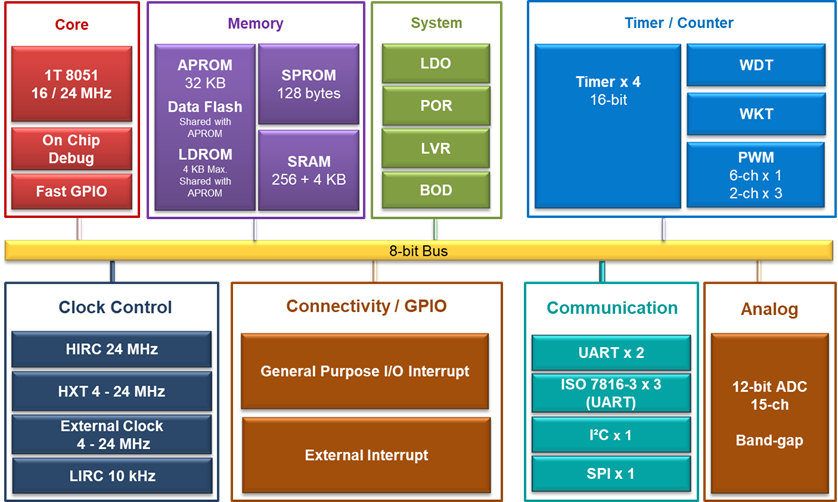

Features:
| • | Operating Characteristics | |
| - | Operating Voltage: 2.4 V to 5.5 V | |
| - | Temperature range: -40°C to +105°C | |
| - | EFT 4.4 kV | |
| - | ESD HBM 7 kV | |
| • | Core | |
| - | Fully static design 8-bit high performance 1T 8051-based CMOS microcontroller, running up to 24 MHz | |
| - | Instruction set fully compatible with MCS-51 | |
| - | 4-priority-level interrupts capability | |
| - | Dual Data Pointers (DPTRs) | |
| • | Memory | |
| - | 32 KB Flash Memory | |
| - | 256 bytes on-chip RAM and 4 KB auxiliary RAM (XRAM) | |
| - | 4 KB Flash Memory for user program loader (LDROM) | |
| - | 128 bytes security protection ROM (SPROM) | |
| • | Clocks | |
| - | Default 16 MHz high-speed internal oscillator (HIRC) with selectable 24 MHz core speed, trimmed to ±1% (accuracy at 25°C, 2.4V to 5.5V), ±2% in -20°C to +105°C | |
| - | 10 kHz low-speed internal oscillator (LIRC) calibrating to ±1% by software from high-speed internal oscillator | |
| • | Power Management | |
| - | POR with 1.15V threshold voltage level | |
| - | Supports BOD (4.4V / 3.7V / 2.7V / 2.2V falling edge) | |
| - | LVR with 2.0V threshold voltage level | |
| • | Timer | |
| - | Four 16-bit timers | |
| - | 12 channels of pulse width modulator (PWM) output, with Fault Brake function | |
| - | One dedicated Self Wake-up Timer (WKT) for self-timed wake-up for low-power modes | |
| - | One programmable Watchdog Timer (WDT) clocked by dedicated 10 kHz internal source | |
| • | Communication Interface | |
| - | Two UART interfaces | |
| - | One I²C interface supporting Master / Slave mode with up to 400 kbps transmission rate | |
| - | One SPI supporting Master / Slave mode | |
| - | Up to three ISO7816-3 interfaces support UART function | |
| • | Analog | |
| - | Up to 15 single-end channels of 12-bit 500 ksps SAR ADC | |
| • | Up to 26 I/Os with interrupt capability | |
| - | Schmitt trigger input / TTL mode selectable | |
| - | I/O all supports interrupt capability | |
| - | Supports INT0 / INT1 interrupt pins | |
| - | Supports wake-up function | |
| • | 96-bit Unique ID (UID) | |
| • | 128-bit Unique Customer ID (UCID) | |
| • | Evaluation Board | |
| - | NuMaker-MG51LD | |
