On the NAU83G10 setup with the NAD Evaluation Platform, a 5V DC power supply is required. The 5V supply will provide power to NAU83G10 ADP as well as the M4 and other components. Because of this, it is best to have more power than the maximum capacity of the NAU83G10. As such, the preferred power supply is 5V (2A), for stereo applications on the NAU83G10. Because the 5V DC Supply provides power to all of the components, it is suggested to remove the D11 Jumper (or Diode) for operation so that the 5V Power from USB is not conflicting with 5V DC Power Supply.

IMPORTANT NOTE: To avoid damaging the chip, DO NOT use any voltage higher than 5.5V for the DC Power supply on the NAD Board.

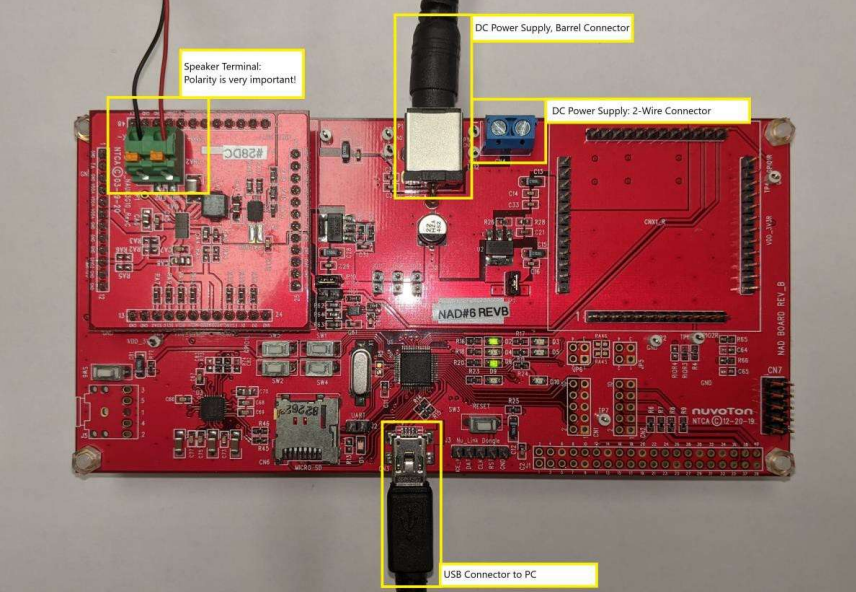

                                                                                                                              NV-NAU83G10S Connection
