NuMaker-Lighting-ARGB
Taking the use of the mother board as NuMaker-NUC1262SE as an example.
| 1. | Check the switch status for pin definition function. | ||||

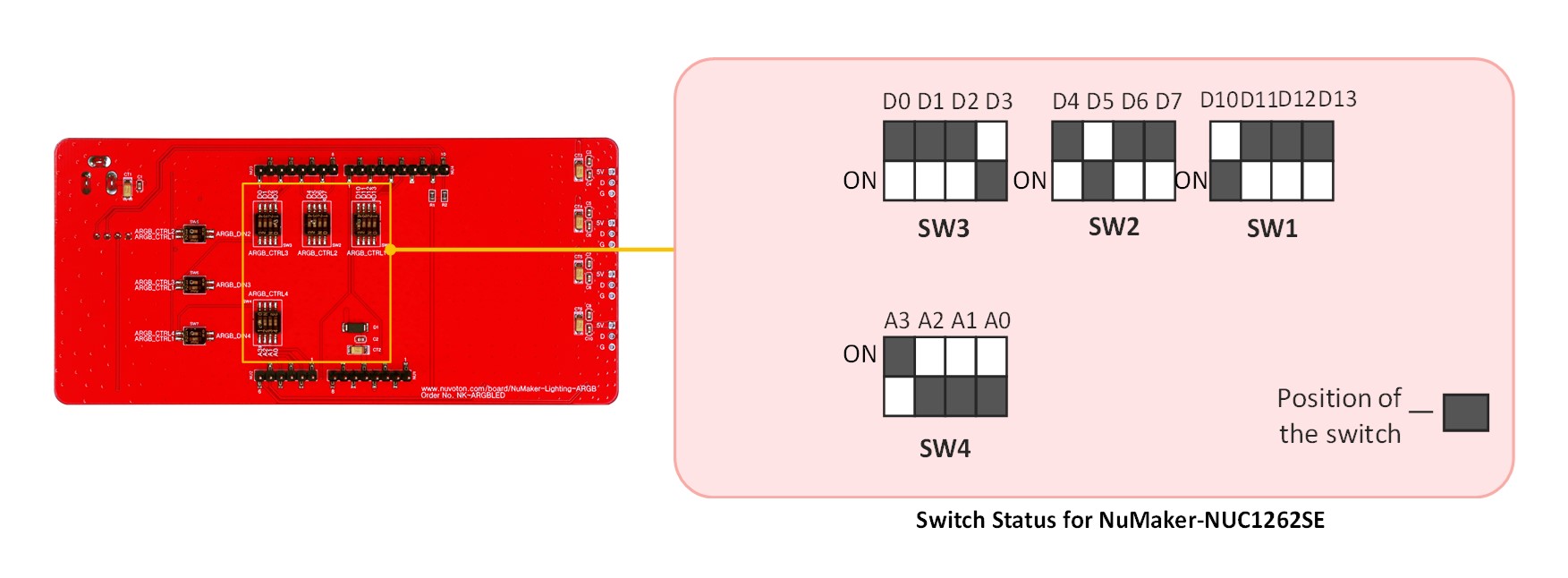

| - | For NuMaker-NUC1262SE, please check the switch status as picture below. | ||||
 |
|||||
| 2. | Check the switch status for ARGB Gen1 and ARGB Gen2 function. | ||||

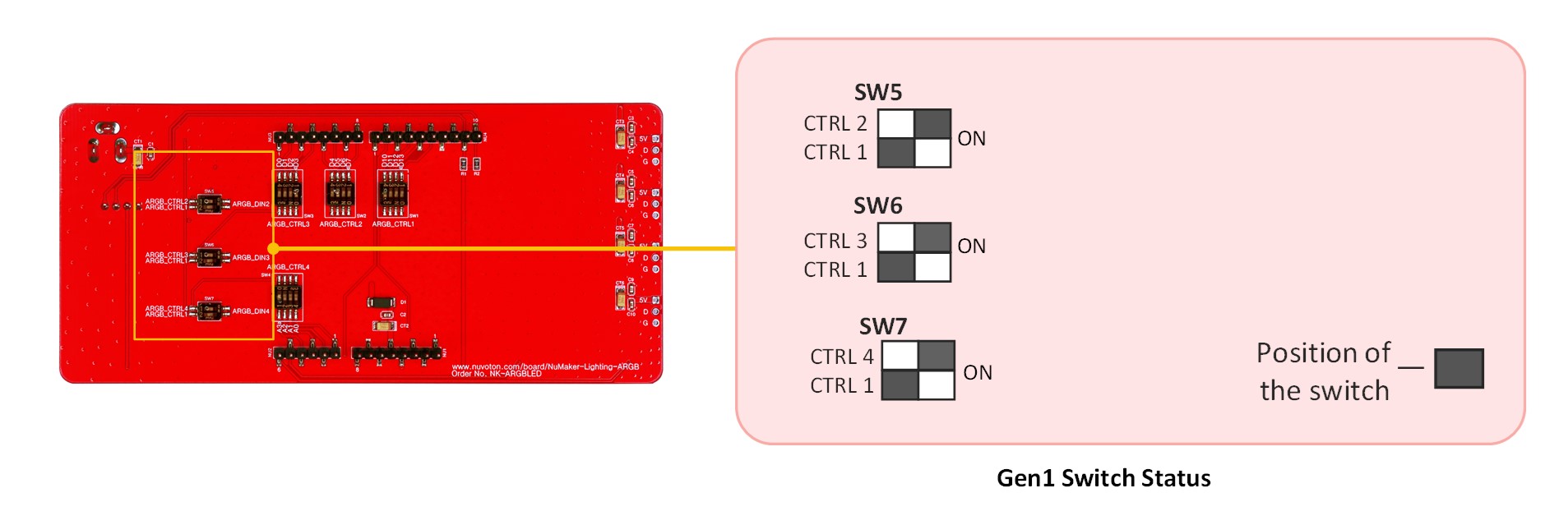

| - | The switch status for ARGB Gen1 function is shown in the picture below. | ||||
 |
|||||

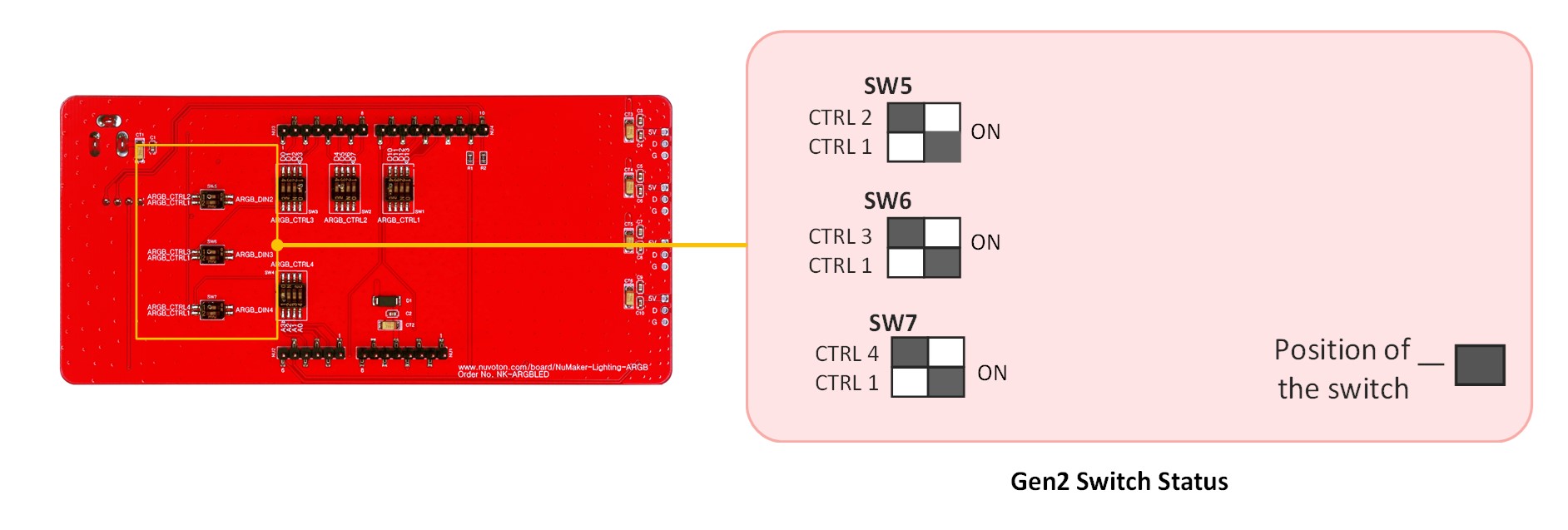

| - | The switch status for ARGB Gen2 function is shown in the picture below. | ||||
 |
|||||
| 3. | Connect the NuMaker-Lighting-ARGB and NuMaker-NUC1262SE. | ||||
| 4. | Please fill out the application form if sample code or any further information is needed. | ||||
|
Resources |
|||||
|
User Manual | Microcontrollers | Software Development Tool | Driver (BSP) | Programmer | Nuvoton Official Forum | Nuvoton eStore
*Ordering Number : NK-ARGBLED |
|||||
