NuMaker-HMI-M032KI
| NuMaker-M032KI Quick Start | |||||
| 1. | Install the preferred toolchain. Please make sure at least one of the toolchains has been installed. | ||||
| - | KEIL MDK Nuvoton edition M0 / M23 | ||||
| - | IAR EWARM | ||||
| - | NuEclipse (GCC) ( Windows ) | ||||
| - | NuEclipse (GCC) ( Linux ) | ||||
| 2. | Download and install the latest Nuvoton Nu-Link Driver. Please install the Nu-Link USB Driver as well at the end of the installation. | ||||
| - | Download and install Nu-Link_Keil_Driver when using Keil MDK. | ||||
| - | Download and install Nu-Link_IAR_Driver when using IAR EWARM. | ||||
| - | Skip this step when using NuEclipse. | ||||
| 3. | Download and unzip the Board Support Package (BSP). | ||||
| 4. | Hardware Setup | ||||
| (1) Open the virtual COM ( VCOM ) function by changing Nu-Link2-Me VCOM Switch No. 1 and 2 to ON. | |||||
|
|
|||||

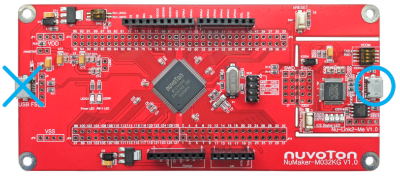

| (2) Connect the ICE USB connector to the PC USB port through USB cable. | |||||
|
|
|||||
| (3) Find the “Nuvoton Virtual COM Port” at Device Manger. | |||||
|
|
|||||
| 5. | Use the “Template” project as an example. The project can be found under the BSP folder. | ||||
| - | M031_Series_BSP_CMSIS_V3.XX.XXX | ||||
| - | SampleCode | ||||
| - | Template | ||||
| - | GCC | ||||
| - | Keil | ||||
| - | IAR | ||||
| 6. | Open and execute the project under the toolchain. For detail setting, please refer to the NuMaker-M032KI User Manual. | ||||
| 7. | User can see the result in the ternimal window on PC. | ||||
|
|
|||||
| emWin GUI Library Package Quick Start | |||||
| １. | Download and unzip the emWin GUI Library Package to Board Support Package (BSP) | ||||
| 2. | The “M032 emWin Quick Start Guide.pdf” can be found under the emWin GUI library package folder. | ||||
| M032_emWin_NonOS | |||||
| M032 emWin Quick Start Guide.pdf | |||||
|
