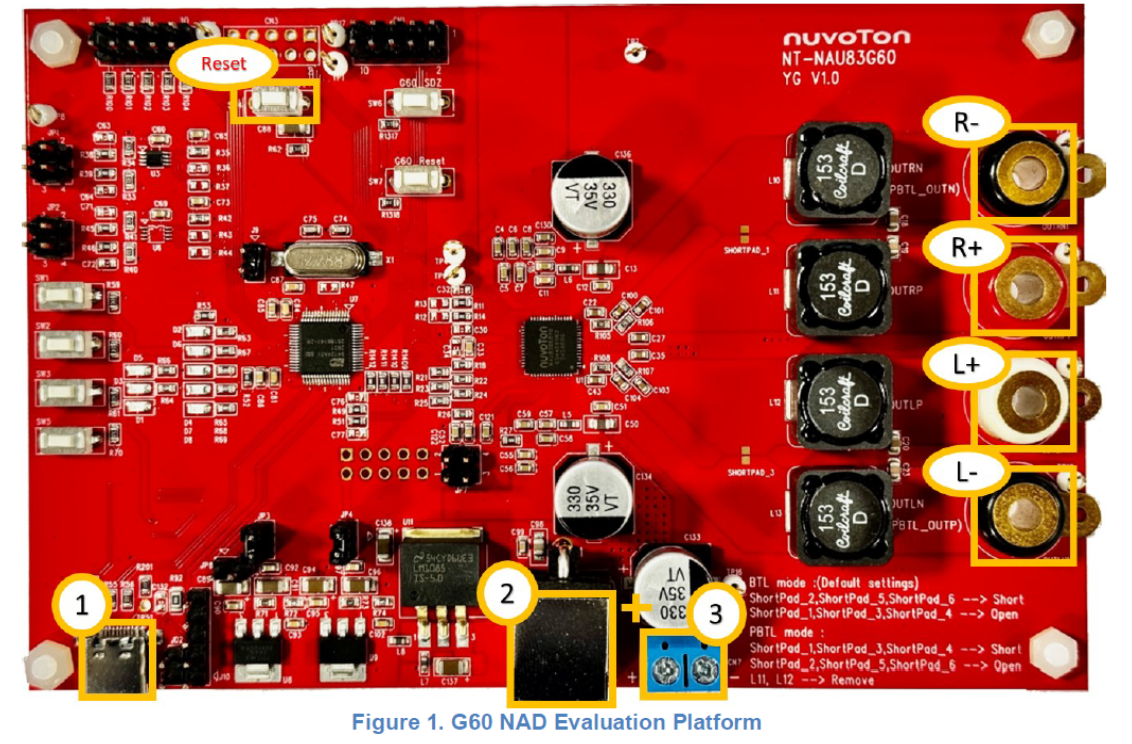

| 1 |
USB-C Connection |
Supports Virtual COM for dB-Lab/NuvotonGUI for PEQ setting |
| 2 |
DC Power Terminal |
Barrel Connector for power supply(Jack ø5.5, Jack Insertion Depth: 11.1 mm) |
| 3 |
DC power Supply 2-wire Connector |
2-wire power connector for (+) and (-) connections. Shares the connection with DC Power Terminal |
| L+ |
Speaker terminals |
Left Channel Positive Terminal (0x10 left) |
| L- |
Left Channel Negative Terminal (0x10 left) |
| R+ |
Right Channel Positive Terminal (0x10 right) |
| R- |
Right Channel Negative Terminal (0x10 right) |
