NT-NAU82011V

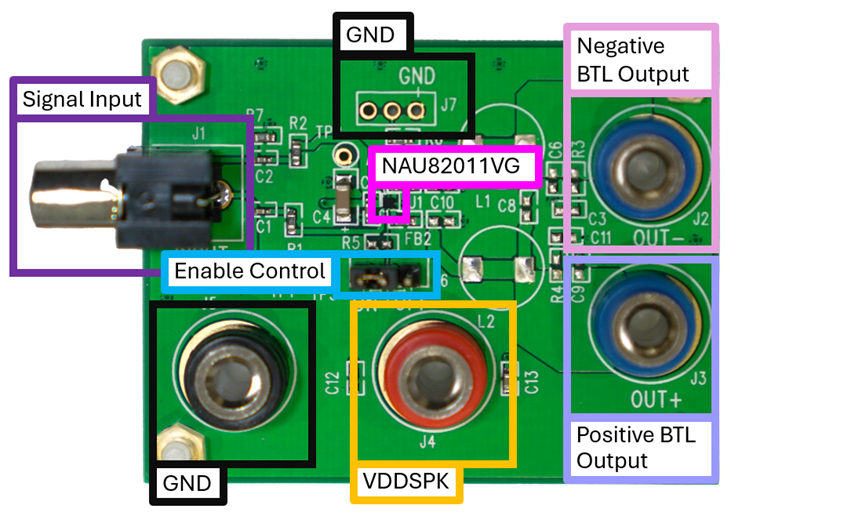

Figure shows the main components and connectors from the front side of NT-NAU82011V as the following list:
- Target Chip: NAU82011V (U1)
- Signal Input RCA Connector (J1)
- VDDSPK Input (J4)
- GND (J5,J7)
- BTL Output (J2, J3)
- Enable Pin (J6)
Figure shows the main components and connectors from the front side of NT-NAU82011V as the following list:
