NL-NAU85L40B

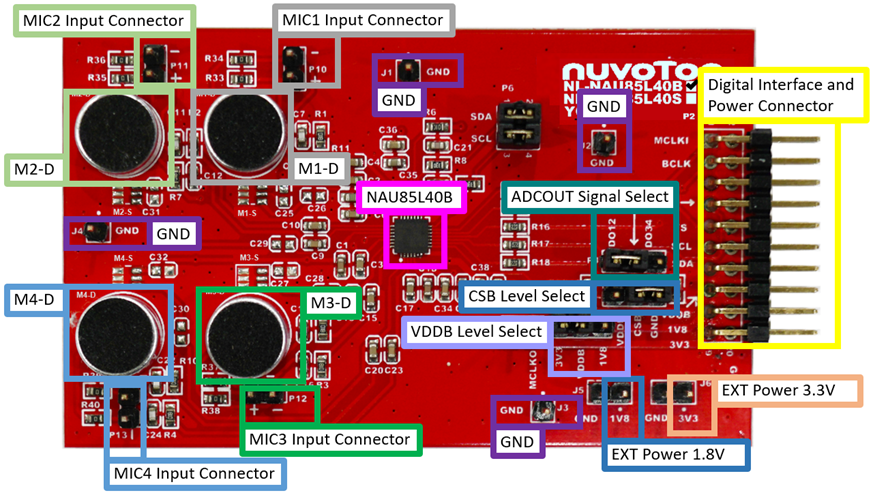

The figure shows the main components and connectors from the front side of NL-NAU85L40B as the following list:
- Target Chip: NAU85L40B (U1)
- Differential Analog Microphone (M1-D, M2-D, M3-D, M4-D)
- Microphone Input Connects
- Digital Interface and Power Extension Connector (P2)
- 3V EXT Power (J6.1)
- 8V EXT Power (J5.1)
- GND (J1, J2, J3, J4)
- VDDB Level Select (P1)
- CSB Level Select (P3)
- ADC Data OUT Select (P4)
