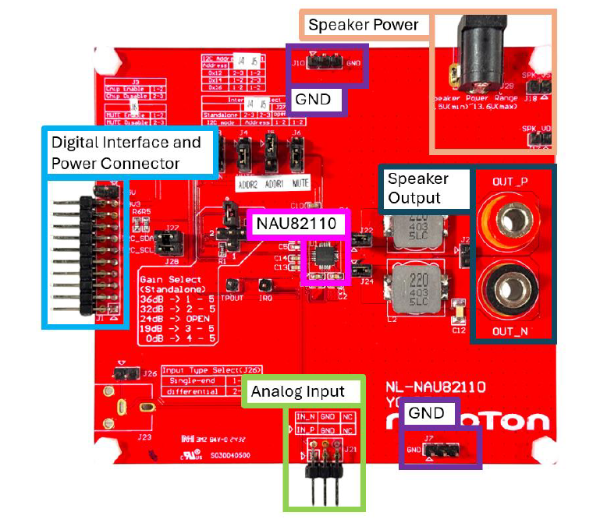

• NL-NAU82110 Front View

• Figure shows the main components and connectors from the front side of NL-NAU82110 as the following list:

        - Target Chip: NAU82110 (U1)
        - Digital Interface and Power Extension Connector (J1)
        - Analog Input (J21)
        - EXT Speaker Power(J17, J18, J29)
        - SPK Output Extension Connector (OUTP, OUTN)
        - GND (J7, J10)
