KE-KA49701A  - KA49701A Up to 17cell monitoring IC evaluation board

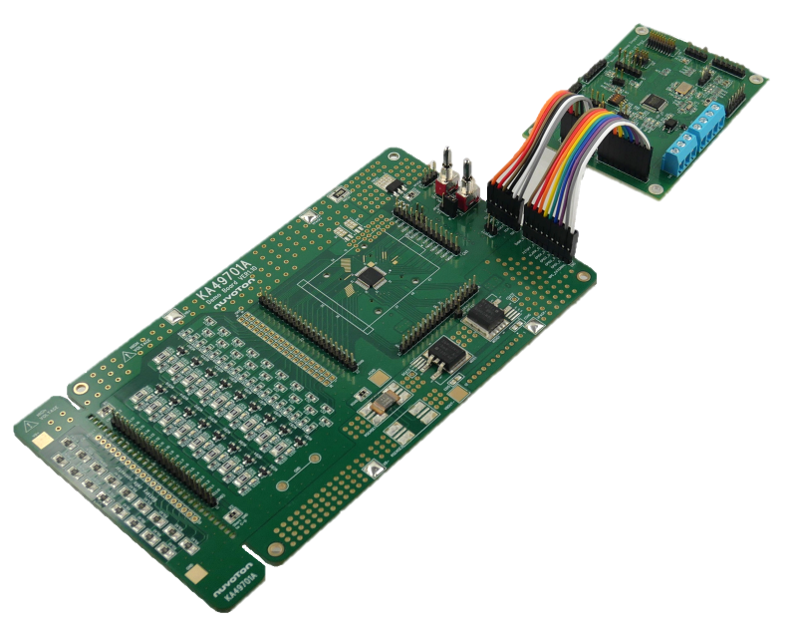

The KE-KA49701A is an evaluation board equipped with the KA49701A, capable of evaluating the voltage measurement of 4 to 17 battery cells, charging and discharging, cell balancing, fault detection, and more. The accompanying PC GUI software links with the MCU software to provide a high-level graphical user interface.

AFE Board:

Battery cell voltage measurement, Low side charging and discharging, cell balancing, fault detection, etc.

MCU Controller Board:

MCU circuit (including software debugging interface)

Power management and MCU reset circuit

BM IC and PC GUI interface circuit

LED status indicators

Software:

PC Graphical User Interface (GUI) Software

Other Accessories:

Board connection wires

TTL-232R-3V3 cable

Various manuals

User Manual
