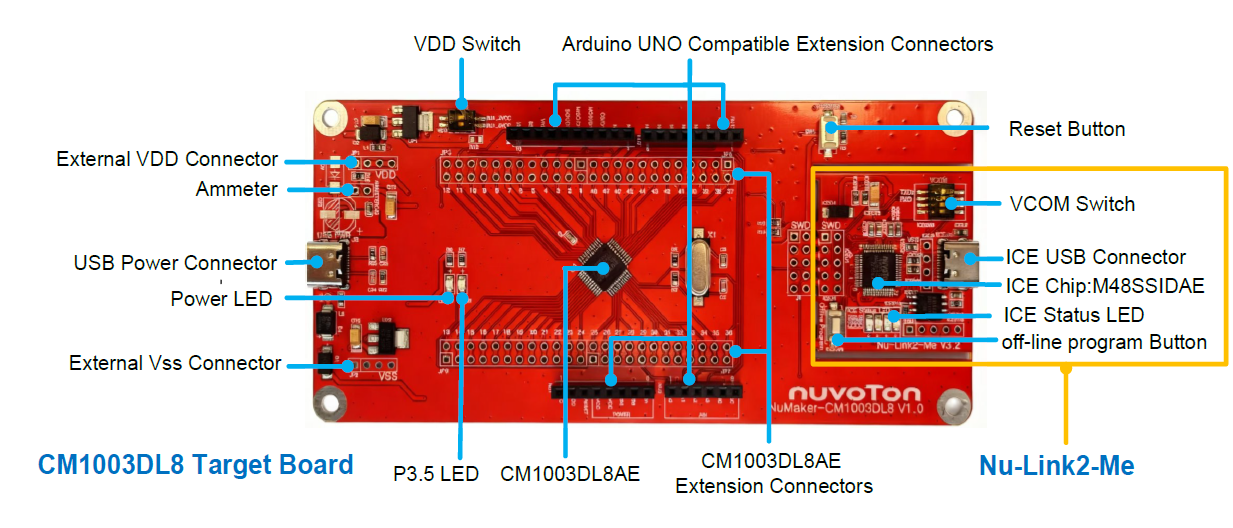

The NuMaker-CM1003DL8 is an evaluation board for Nuvoton NuMicro CM1003DL8AE microcontrollers. The NuMaker-CM1003DL8 consists of two parts: an CM1003DL8 target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-CM1003DL8 is designed for project evaluation, prototype development and validation with power consumption monitoring function. The NuMaker-CM1003DL8 board is suitable for a wide range of applications such as home appliances, LED lighting controls, motor controls or Industrial automation.

The CM1003DL8AE target board is based on NuMicro CM1003DL8AE. For the development flexibility, the CM1003DL8target board provides the extension connectors, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.

Resources

User Manual | Microcontrollers | Software Development Tool | Driver (BSP) | Programmer | Nuvoton Official Forum | Nuvoton eStore

*Ordering Number : NK-CM1003DL8
