How to enable configurable Data Flash and set the size in the IAR Embedded Workbench for ARM development environment? Datum：2018-01-16
In the NuMicro® family, if the Data Flash size is configurable, its size is shared with the APROM. To configure Data Flash, please follow the steps below:

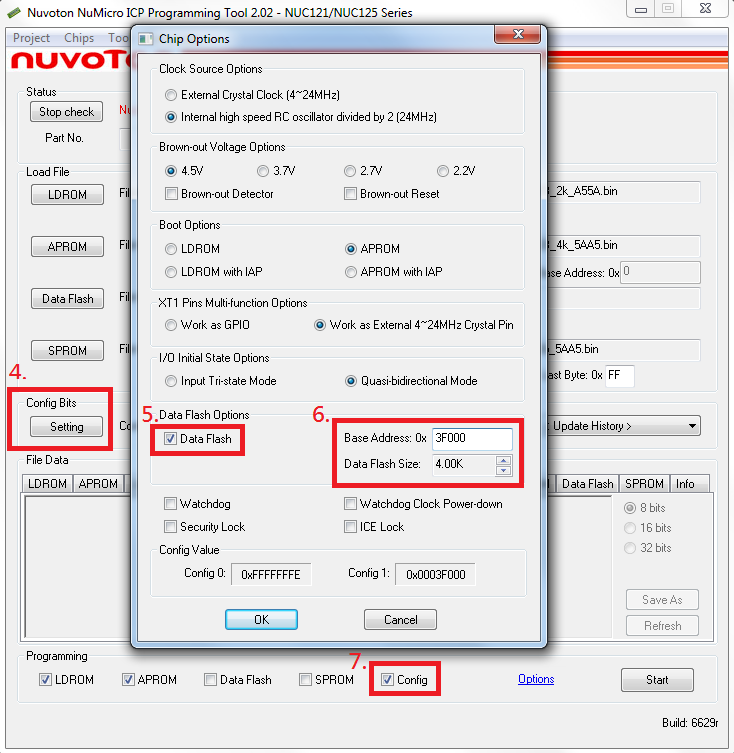

1. Select Nu-Link à ICP Programming Tool
2. Select Target Chip for the ICP Tool;
3. Click “Continue” button;
4. Click “Setting” button to open the Chip Options form;
5. Enable “Data Flash”;
6. Set the Data Flash size;
7. Enable “Config” for programming according to the config values.
| Produkte: | Mikrocontroller ,8-bit-8051-MCUs ,Arm Cortex-M0-MCUs ,Arm Cortex-M4-MCUs |
|---|---|
| Applikationen: | |
| Funktion: | Peripherals,Memory,Config,Data Flash,Flash Memory Controller (FMC),Software and Tools,Development-Environment,IAR,Nu Tools,In Circuit Programming (ICP) Tool |
