Industrial 8051 Series
NuMicro® MS51 industrial series microcontrollers is based on 1T 8051 core, running up to 24 MHz, with up to 32 Kbyte of Flash memory and up to 2 Kbyte of SRAM. It supports one high precision 24 MHz allowing ± 1 % deviation and one 10 kHz internal RC Oscillators, operating at 2.4V ~ 5.5V voltage and - 40 ℃ ~ 105 ℃.
NuMicro® MS51 is equipped with special features such as up to 15 channels of 500k SPS 12-bit ADC, up to 12 channels of PWM with independent counters and GPIO supports 20 mA driving capability, also with ESD resistivity 8 kV and EFT resistivity 4.4 kV. Combined all these above high performance features, MS51 series is suitable for high-reliability industrial and consumer applications.

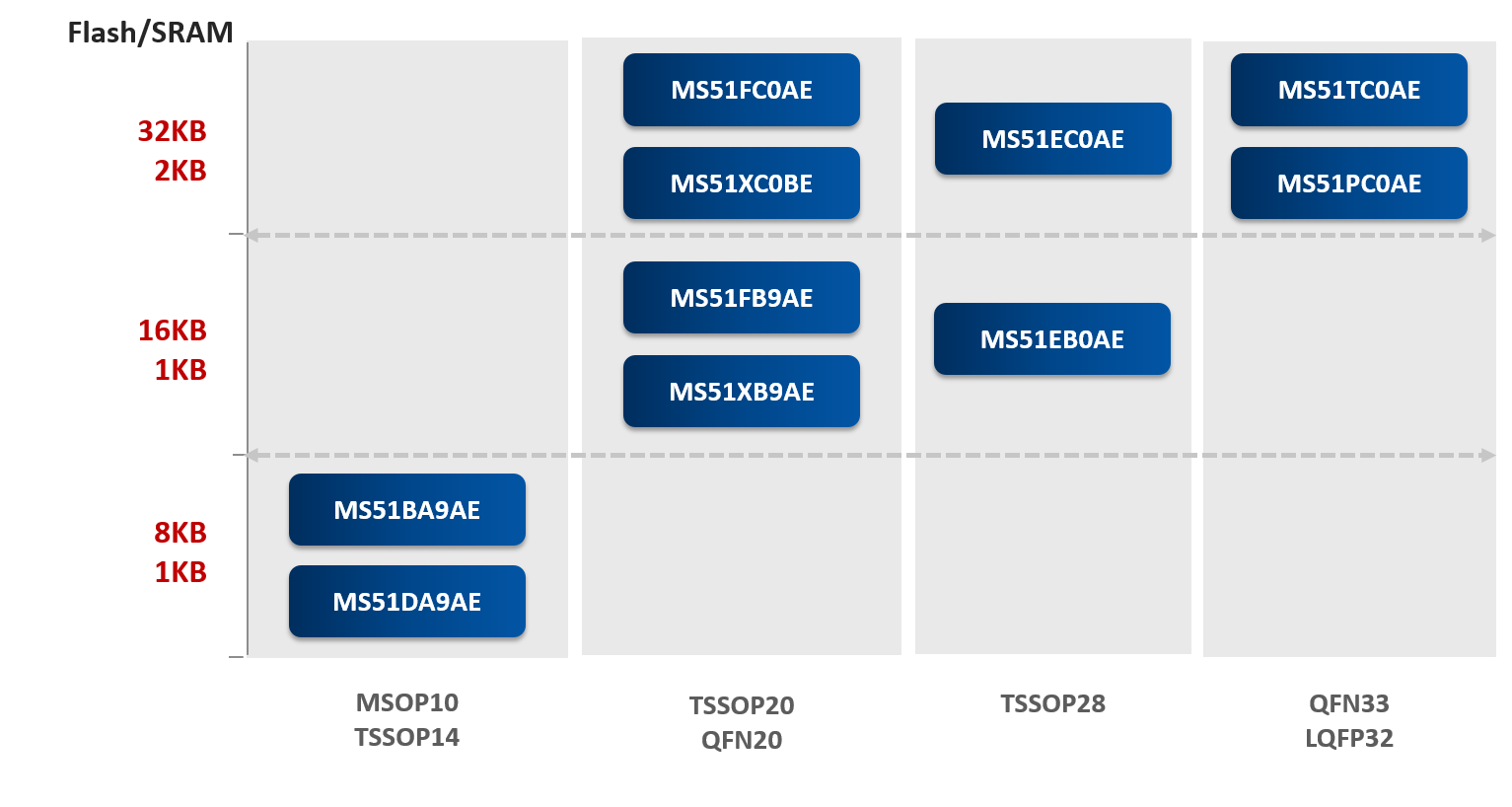

MS51 series offers 10-33 pin packages for a broad range of applications.
Target Application:
- LED lighting
- Home appliances
- Industrial control
- Motor control
- Battery management system
- Power supplies
Key Features:
| • | Operating Characteristics | |||||||||
| - | Voltage range: 2.4V to 5.5V | |||||||||
| - | Operating speed: Up to 24 MHz | |||||||||
| - | Temperature range: - 40 ℃ to + 105 ℃ | |||||||||
| • | Core | |||||||||
| - | 1T 8051-based CMOS microcontroller running up to 24MHz | |||||||||
| - | Instruction set fully compatible with MCS-51 | |||||||||
| - | 4-priority-level interrupts capability | |||||||||
| • | Memories | |||||||||
| - | Up to 32 Kbyte Flash APROM | |||||||||
| - | Up to 2 Kbyte SRAM | |||||||||
| - | Up to 4 Kbyte Flash for user program loader ( LDROM ) share with ARPOM | |||||||||
| - | Configurable Data Flash, shared with APROM | |||||||||
| - | ISP / ICP / IAP programming | |||||||||
| • | Clocks | |||||||||
| - | 16 MHz high-speed internal oscillator trimmed to ± 1 % when VDD 5.0 V, ± 2 % in all conditions | |||||||||
| - | 24 MHz high-speed internal oscillator trimmed to ± 1 % when VDD 5.0 V, ± 2 % in all conditions | |||||||||
| - | 10 kHz low-speed internal oscillator | |||||||||
| • | Power management | |||||||||
| - | Two low power modes: Idle and Power-down mode | |||||||||
| - | Power-down current: < 6 μA | |||||||||
| • | Timers | |||||||||
| - | Four 16-bit timers | |||||||||
| - | Up to six pairs, twelve channels of pulse width modulator ( PWM ) output, with Fault Brake function | |||||||||
| - | One dedicated Self Wake-up Timer ( WKT ) for self-timed wake-up for low-power modes | |||||||||
| - | One programmable Watchdog Timer ( WDT ) clocked by dedicated 10 kHz internal source | |||||||||
| • | Communication interfaces | |||||||||
| - | One SPI port with master and slave modes, up to 12 Mbps when system clock running at 24 MHz | |||||||||
| - | One I²C bus with master and slave modes, up to 400 kbps data rate | |||||||||
| - | Two full-duplex UART ports with frame error detection and automatic address recognition | |||||||||
| - | Up to three ISO7816-3 interfaces supports UART function | |||||||||
| • | Analog | |||||||||
| - | One 12-bit, 500 kSPS SAR ADC ( Up to 15 channels input ) | |||||||||
| - | ADC support continuous scan mode and data storage in SRAM | |||||||||
| • | Up to 30 general purpose I/O pins with interrupt capability | |||||||||
| - | Output pins support 2-level slew rate control individually | |||||||||
| - | Supports high sink / source current | |||||||||
| - | Built-in programmable pull-up and pull-low resistors | |||||||||
| • | 96-bit Unique ID (UID) | |||||||||
| • | 128-bit Unique Customer ID (UCID) | |||||||||
| • | Evaluation Board | |||||||||
|
||||||||||
