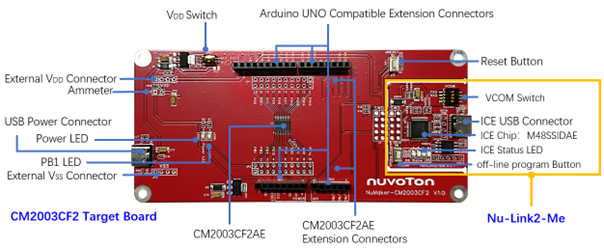

The NuMaker-CM2003CF2 is an evaluation board for Nuvoton NuMicro^® CM2003CF2AE, CM2003CF3AE microcontrollers. The NuMaker-CM2003CF2 consists of two parts: an CM2003CF2 target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-CM2003CF2 is designed for project evaluation, prototype development and validation with power consumption monitoring function. The NuMaker-CM2003CF2 board is suitable for a wide range of applications such as home appliances, LED lighting controls, motor controls or Industrial automation.

The CM2003CF2 target board is based on NuMicro^® CM2003CF2AE. For the development flexibility, the CM2003CF2 target board provides the extension connectors, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.
