Nuvoton's bidirectional Vienna rectifier solution is specifically designed for high-performance server PSUs, enabling the next generation of green and intelligent power architectures.

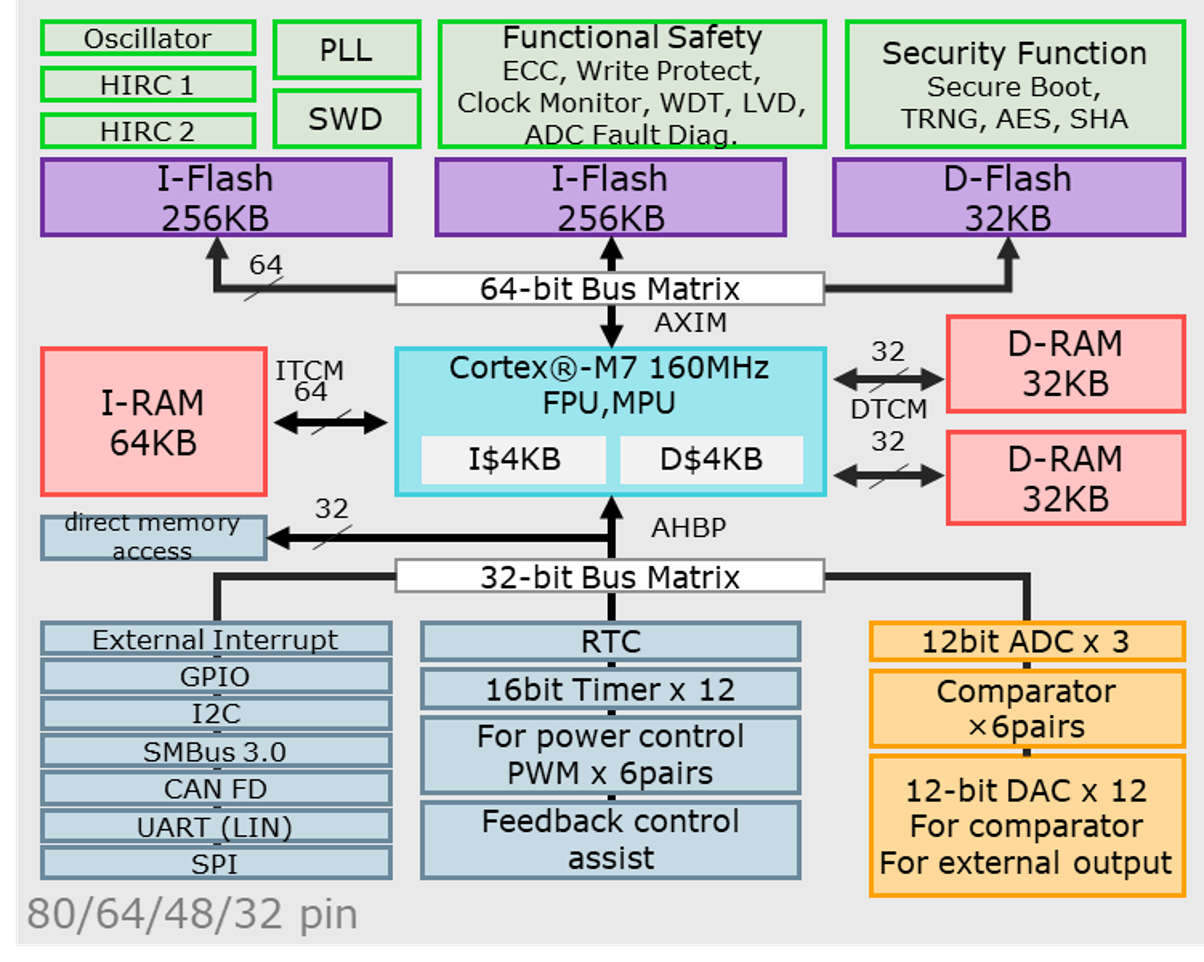

• Features


  -	Arm® Cortex®-M7 160 MHz with FPU
  -	Dual Bank Instruction Flash memory 256 KB, Instruction RAM 64 KB
  -	Data RAM 64 KB, Data Flash memory 32 KB
  -	3x 12-bit ADC units (0.2 μs conversion time)
  -	8x High-resolution PWM 8 units (208 psec resolution)
  -	Built-in security functions (CRYPTO, RNG, FVC, PLM)


• Reference Solution

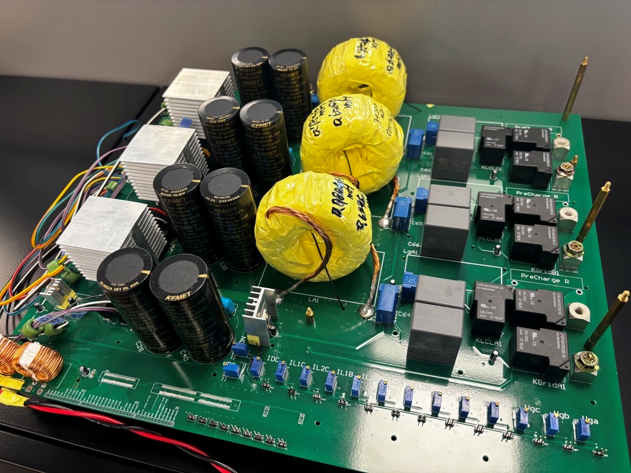

  Bidirectional Vienna Rectifier Eval Board
  -	Output Power: 10 kW (~25 KW)
  -	Output Voltage: 800V DC
  -	Output Current: 25 Arms
  -	Normal Input Voltage: 380 VL-L.rms
  -	Switching frequency: 50 KHz
  -	Efficiency: >98.5%
