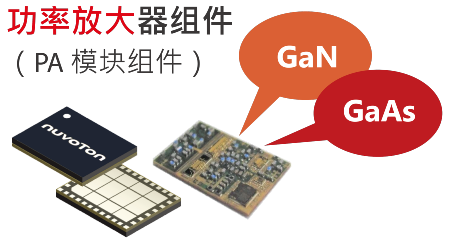

RF-GaN PA Module

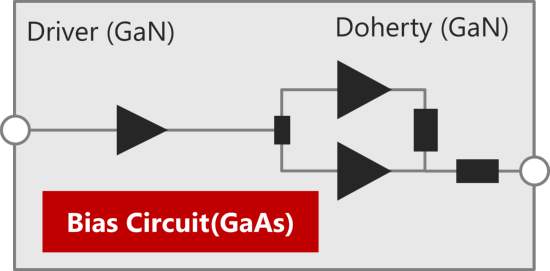

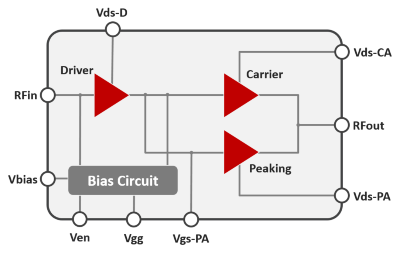

lNuvoton RF-GaN Power Amplifier (PA) Module is a fully integrated RF power amplifier module with driver amplifier, Doherty amplifier, and gate bias circuit for 5G NR massive MIMO and outdoor small cell applications.
Our fully integrated and high-efficiency PA module provides the highest level of integration into the radio system, accelerating time to market
- Feature
Here’s the reformatted table with the right column content vertically centered:
- Operating in NR band n77, n78 and n79 - 8W and 12.6 W Avg. Power- Driver and Doherty Amplifiers- 50 Ω input and output matching- Bias circuit for GaN- 12 x 8 mm Plastic surface mount package
- Specifications
12.6W PA Module: KU0HH Series
P/N KU0HH36C KU0HH39C KU0HH48C Band [GHz] 3.3 - 3.8 3.7 - 4.2 4.6 - 5.0 Psat [dBm] 49 49 49 Pave [dBm] 41 41 41 Gain [dB] 29 28 26 PAE [%] 48 47 45 Vds 28 V Size 12.0 x 8.0 mm

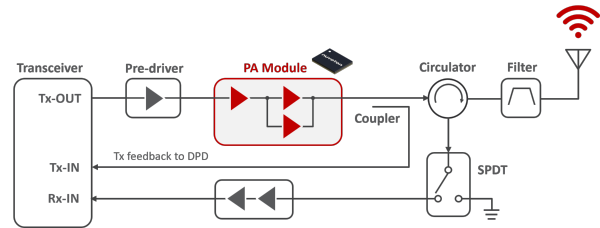

- System Block Diagram
