This platform uses the USB port to design an 8-way full-speed USB host port and uses the USB port to replace the connection measurement module at any time. The NuMicro® NUC980 with NuMicro® NUC029SEE USB device measurement module provides a complete development platform that shortens the overall development cycle.

• Features


  -	8 Prots free to replace the USB measurement module
  -	Linux OS
  -	Arm® Cortex® - M0 USB device reference design
  -	Industrial temperature - 40 ℃ ~ 85 ℃
  -	Supports  10 / 100 Ethernet

• Specifications


  NUC980 (32-bit Arm926EJ-S)
  -	8 Ports USB Full speed host
  -	Stack 64 MB DDR in LQFP package
  -	10 / 100 Ethernet
  NUC029SEE  (32-bit Arm® Cortex® - M0)
  -	USB full speed device / crystal-less
  -	Support  5V I / O
  -	128 KB Flash / 16 KB RAM

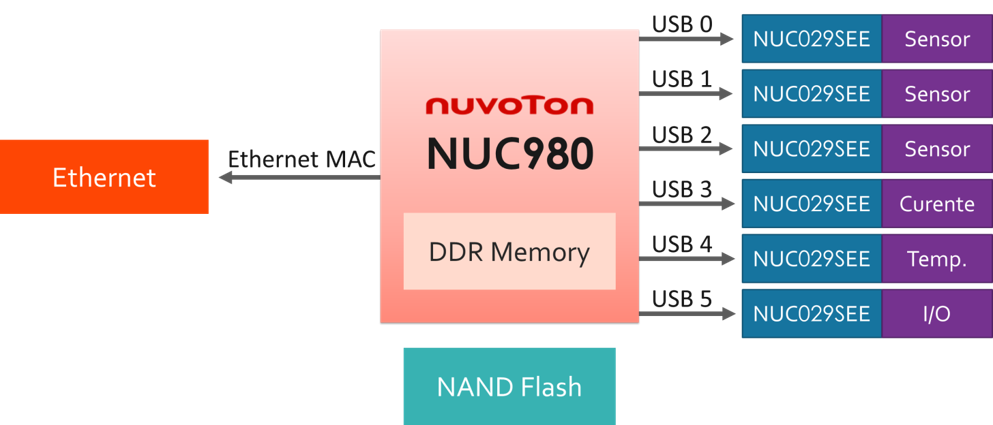

• System Block Diagram
