Optimize your system, which uses a sensor for image, audio, and depth.(KM2NS001 series)

• Features


  -	Aggregates multiple sensor interfaces into one chip and communicates via MIPI/USB
  -	Controls the timing of cameras, audio, and other sensors, and corrects the camera’s parallax
  -	Sensors can be connected and liaised at a zone side without each connection to the ECU

• Overview

• Specifications


  CAM/TOF input x4: MIPI-CSI2 (D-PHY)

  Up to 4 image sensors from following:

  -8M/30p RAW x1 (or 4M/60p RAW x2)

  -2M/60p YUV x3,

  -2M/60p monochrome x2

  -TOF/60p    x2

  Video out x2: MIPI-DSI/CSI2 (D-PHY)

  Mic input x4: I2S / PDM

  Speaker output x2: I2S / DPWM

  CPU x3 : Arm® Cortex®-M0+ (CPU0)

  Arm® Cortex®-M33 (CPU1/2)

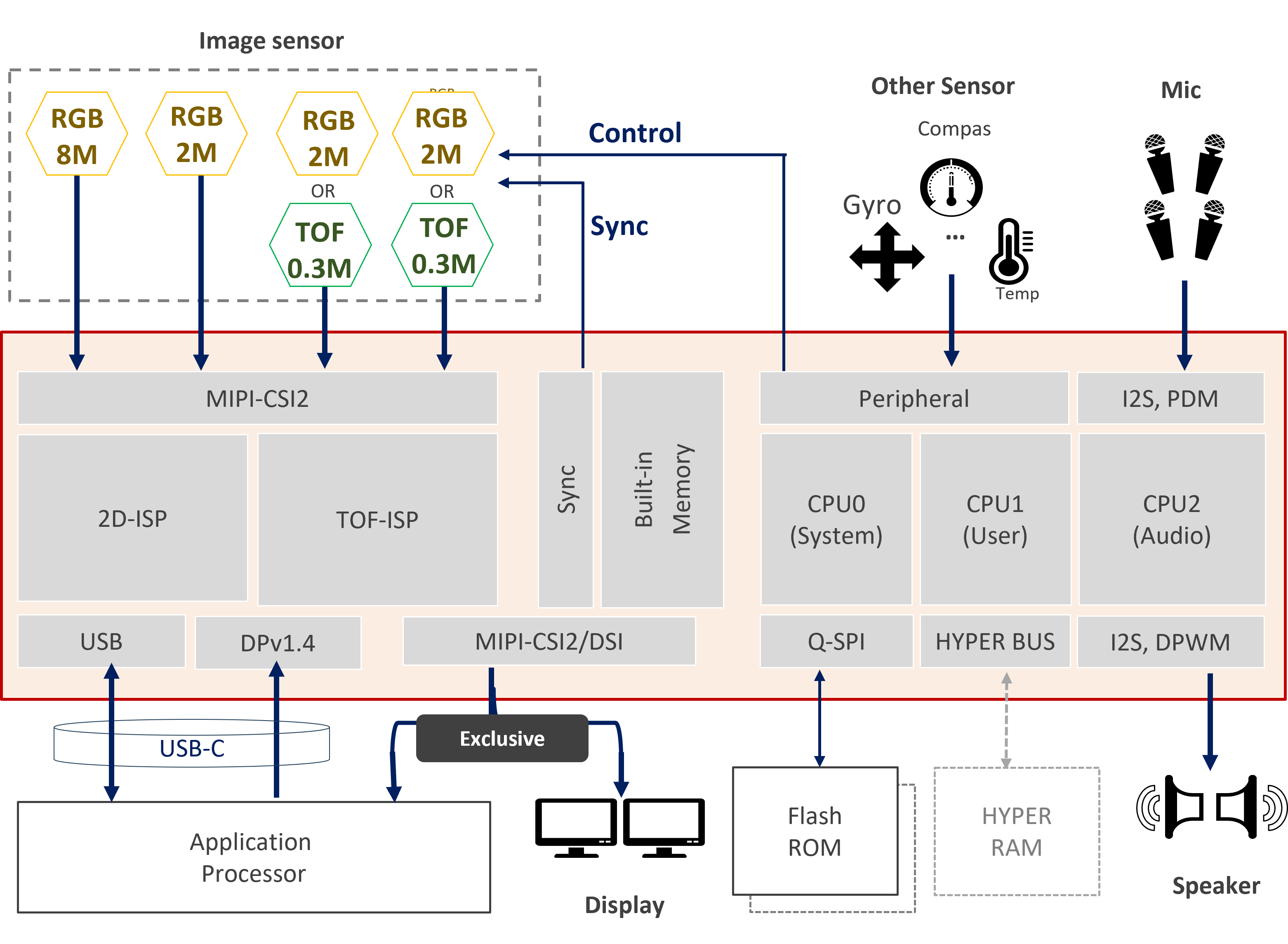

• Block Diagram

• Applications

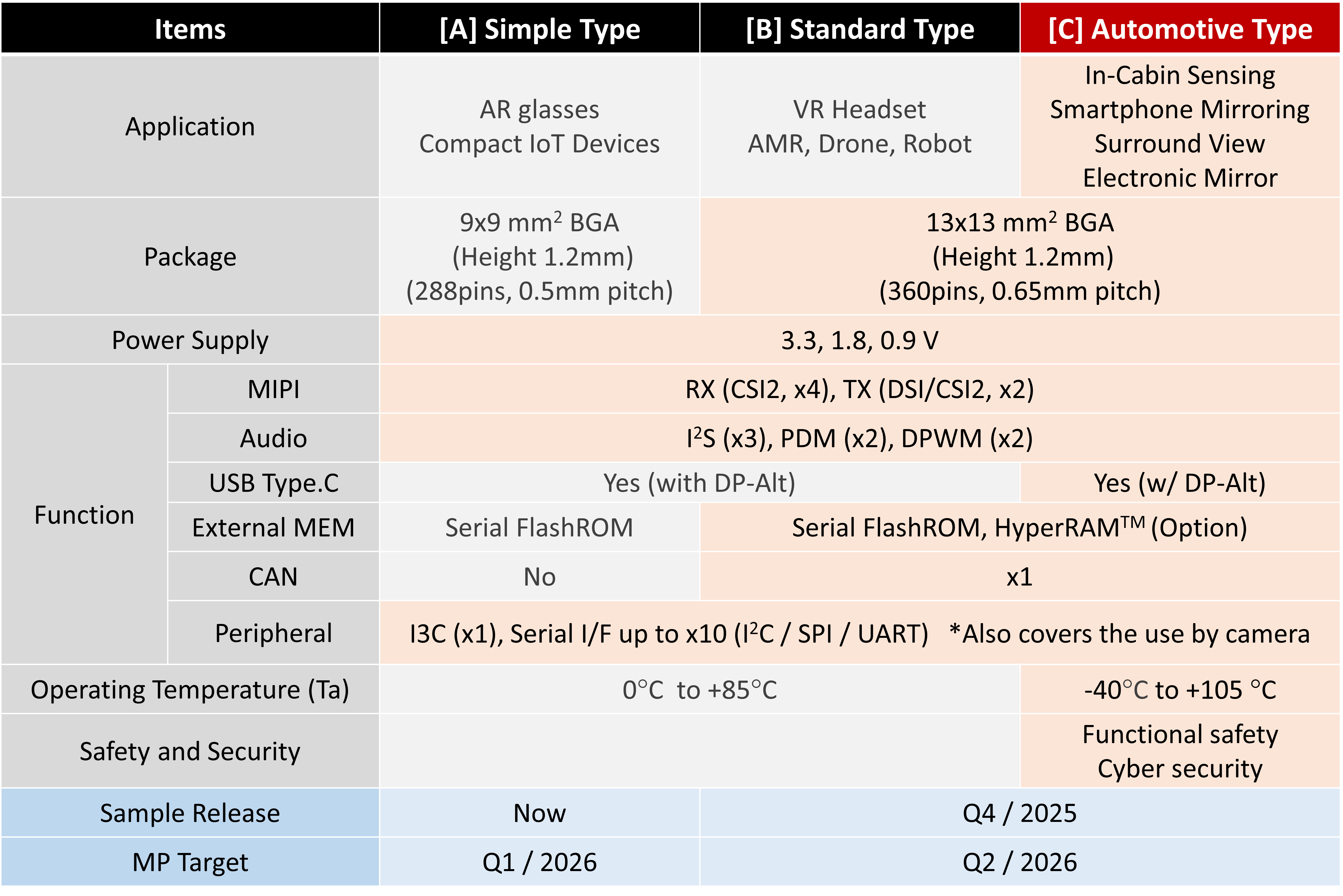

• Product Type
